5015270930
MolexUnited States

5015270930

ObsoleteArrays, Edge Type, Mezzanine (Board to Board)

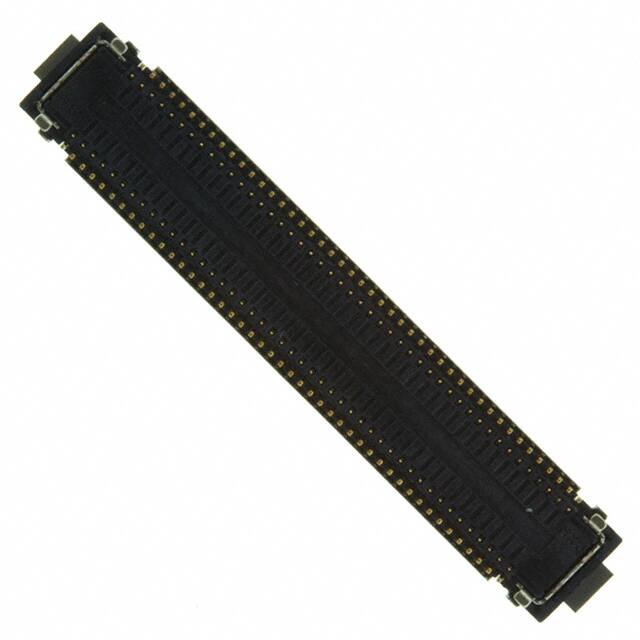

CONN RCPT 90POS SMD GOLD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Positions90
Rows2
Pitch400 µm
GenderFemale
Environment and package
Height Above Board0.048" (1.22mm)
Mated Stacking Heights1.3mm
Mounting TypeSurface Mount
PackageTape & Reel (TR); Cut Tape (CT)
Other
Base Product Number501527
Connector TypeReceptacle, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness8.00µin (0.203µm)
FeaturesSolder Retention
MfrMolex
Number of Positions90
Number of Rows2
Pitch0.016" (0.40mm)
Product StatusObsolete
SeriesSlimStack 501527
