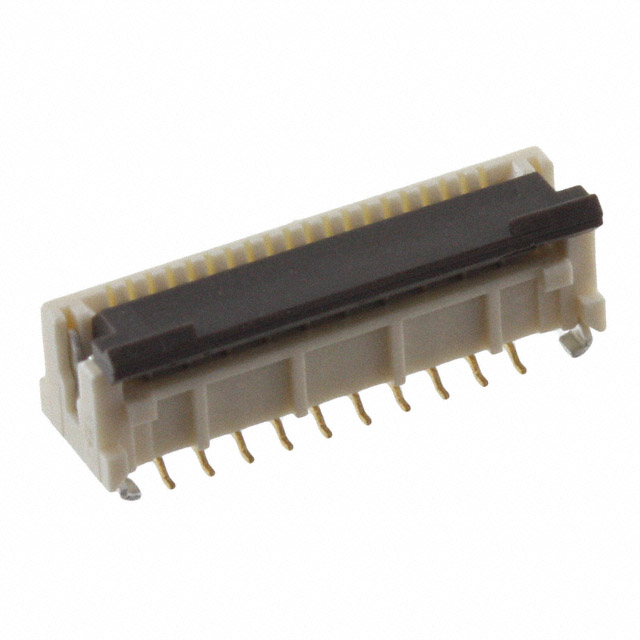

CONN FFC VERT 20POS 0.5MM SMD
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Pitch500 µm
Current rating400 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.4A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.159" (4.04mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C |
| Other | |
| Actuator Color | Brown |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Base Product Number | 501951 |
| Cable End Type | Straight, Tapered |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Contact Material | Copper Alloy |
| Features | - |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | White |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Locking Feature | Flip Lock |
| Manufacturer | Molex |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Number of Positions | 20 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Obsolete |
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On 501951 |
| Termination | Solder |
