MolexUnited States

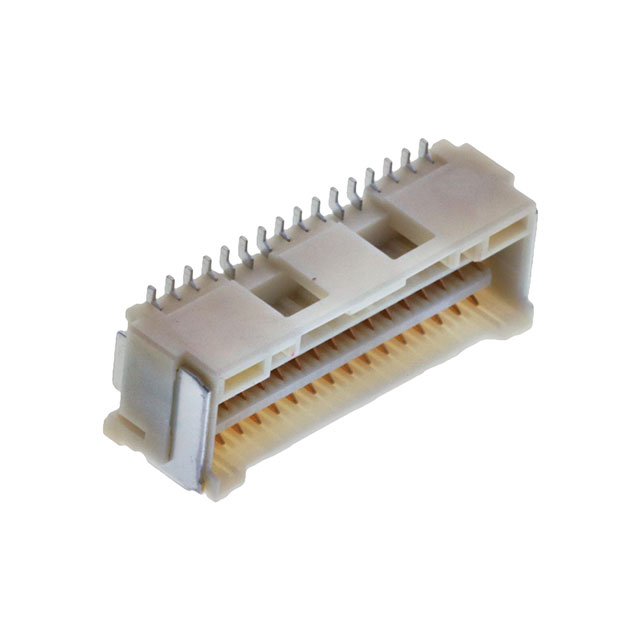

CONN RCPT 32POS 0.059 GOLD SMD
All alternatives
View full reportTechnical parameters
Key specs
Positions32
Rows2
Pitch1.5 mm
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.344" (8.75mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Other | |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Base Product Number | 505406 |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | - |
| Contact Type | Forked |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Ingress Protection | - |
| Insulation Color | Beige |
| Insulation Material | Resin |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.059" (1.50mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | CLIK-Mate 505406 |
| Style | Board to Cable/Wire |
| Termination | Solder |
