Song Chuan(松川)China
Heavy duty 55A 600VAC(for 515C), 70A 600VAC(for 515), 100A 600VAC(for 515H) power type.; SPDM contact configuration with large contact gap 3.0mm version.; Conforms to European photovoltaic standard IEC 62109-1.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 ~ 24 V

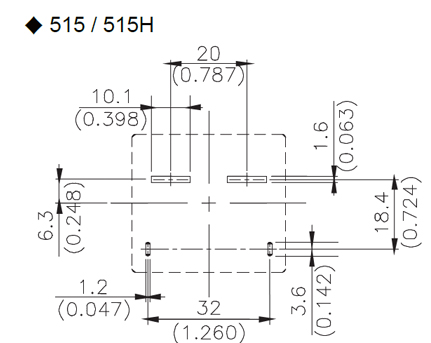

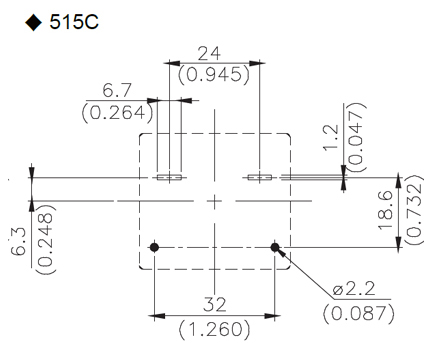

| Power | |
|---|---|
| Coil voltage | DC | 12~24V |
| Max. Allowable Contact current(A) | 515C:55A515:70A515H:100A |
| Power consumption | DC | 515/515C:approx.2.4W / 0.6W515H:approx.3.8W / 0.95W |
| Other | |
| 1 | 2 | | 3 | | 4 | | 5 | | 6 | 7 |
| 1. | 515 | — | Basic series designation |
| 2. | BlankHC | — | Standard typeHigh power typeCharacteristic flexible type |
| 3. | 1A | — | Form A, single-pole, double-make (SPDM) |
| 4. | H | — | Contact material Ag alloy |
| 5. | F | — | Class F |
| 515 | C | – | 1A | | H | – | F | – | C | □ |
| 6. | C | — | Flux tight |
| 7. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 4000V |
| Contact circuits | —— |
| Contact configuration | 1A |
| Contact rating | Resistive load | 515C: 55A 240VACMaking 20A, Carrying 55A, Breaking 20A / 600VAC515:70A 240VACMaking 20A, Carrying 70A, Breaking 20A / 600VAC515H:90A 400VAC,80A 400VACMaking 20A, Carrying 100A, Breaking 20A / 600VAC |
| Dielectric strength | Open contact | 2000V |
| Electrical(Min.) | 30K |
| Life expectancy | Mechanical(Min.) | 1×106(frequency 9,000 ops./hr)1×106(frequency 9,000 ops./hr)(For Enlarge contact gap) |
| Outline (L×W×H) mm | 40.3×.36.6×39 |
