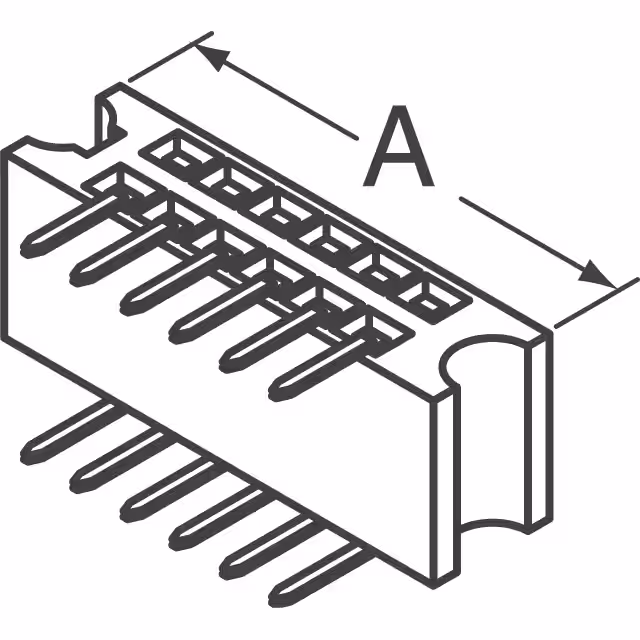

CONN RCPT 12POS 0.1 GOLD PCB R/A
All alternatives
View full reportTechnical parameters
Key specs
Positions12
Rows2
Pitch2.54 mm
GenderFemale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.238" (6.05mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | - |
| Package | Tube |
| Other | |
| Applications | - |
| Base Product Number | 534204 |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Guide Pin Ears |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | - |
| Material Flammability Rating | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | AMPMODU Mod II |
| Style | Board to Board |
| Termination | Kinked Pin, Solder |
