Skyworks Solutions Inc.United States

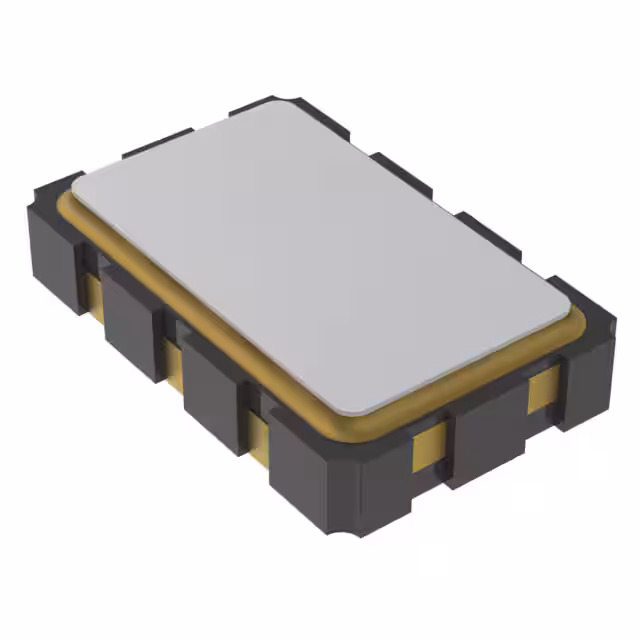

546CAB000246BAGR
Pin Configurable/Selectable OscillatorsXTAL OSCILLATOR SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency156.3 ~ 200 MHz
Frequency stability20 ppm
Supply voltage1.8 ~ 3.3 V
Output typeCMOS
| Power | |
|---|---|
| Current - Supply (Disable) (Max) | 112 mA |
| Current - Supply (Max) | 127mA |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| AC and DC characteristics | |
| Frequency - Output 1 | 156.25MHz, 200MHz |
| Frequency - Output 2 | - |
| Frequency - Output 3 | - |
| Frequency - Output 4 | - |
| Frequency Stability | ±20ppm |
| Environment and package | |
| Height | 0.052" (1.33mm) |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Other | |
| Base Resonator | Crystal |
| Function | Enable/Disable |
| Mfr | Skyworks Solutions Inc. |
| Output | CMOS |
| Product Status | Discontinued at Digi-Key |
| Series | Ultra™ Si546 |
| Type | XO (Standard) |
