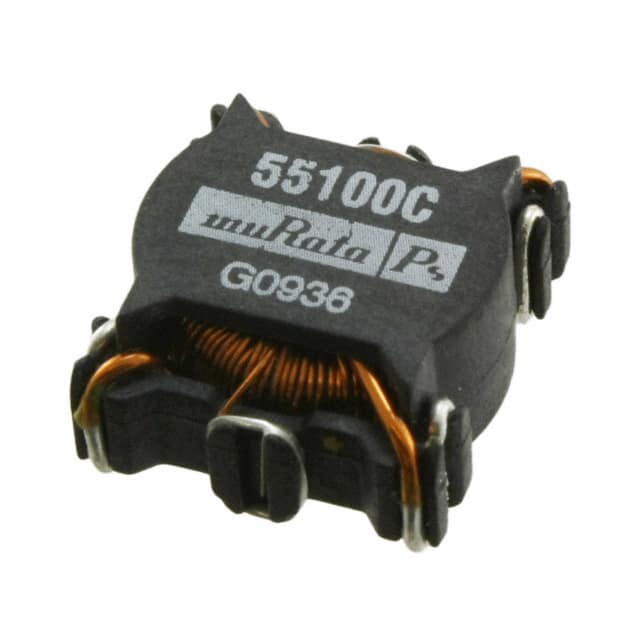

CURR SENSE XFMR 1:1:100 15A SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 15 A |
| Current Ratio | - |
| AC and DC characteristics | |
| Frequency Range | 50kHz ~ 500kHz |
| Environment and package | |
| Height - Seated (Max) | 0.280" (7.10mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Size / Dimension | 0.575" L x 0.496" W (14.60mm x 12.60mm) |
| Other | |
| Base Product Number | 55 |
| DC Resistance (DCR) | 2.3mOhm Primary, 850mOhm Secondary |
| ET (Volt-Time) | - |
| Inductance | 14.8 mH |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Obsolete |
| Ratings | - |
| Series | 5500 |
| Termination Style | - |
| Turns Ratio - Primary:Secondary | 1:1:100 |
| Type | Invasive |
| Weight | 0.004 lb (1.70 g) |
