5523511

ObsoleteLEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs

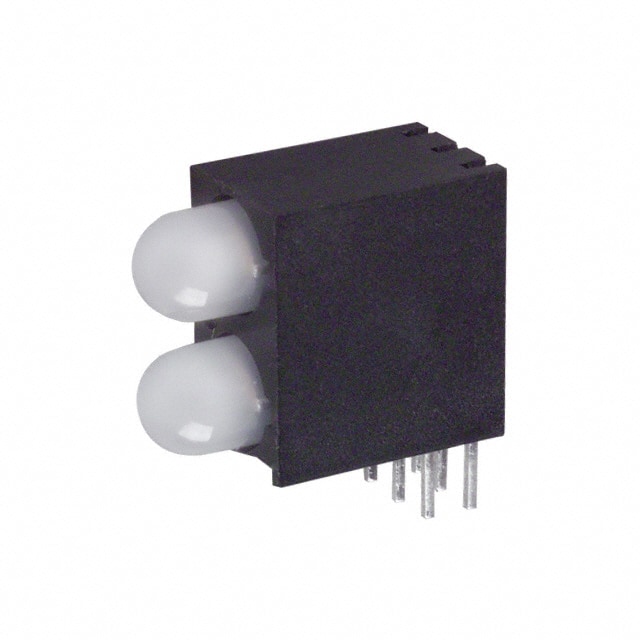

LED 5MM RED/GRN BICLR 3LEAD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current10mA
Voltage Rating2.3V Green, 2.1V Red
Environment and package
Lens Size5mm, T-1 3/4
Mounting TypeThrough Hole, Right Angle
PackageBulk
Other
ColorGreen, Red (x 2)
Configuration2 High
Lens StyleRound with Domed Top
Lens TypeDiffused
MfrDialight
Millicandela Rating8mcd Green, 5mcd Red
Product StatusObsolete
Series552
Viewing Angle65°
Wavelength - Peak565nm, 635nm
