Cornell Dubilier / Illinois CapacitorUnited States

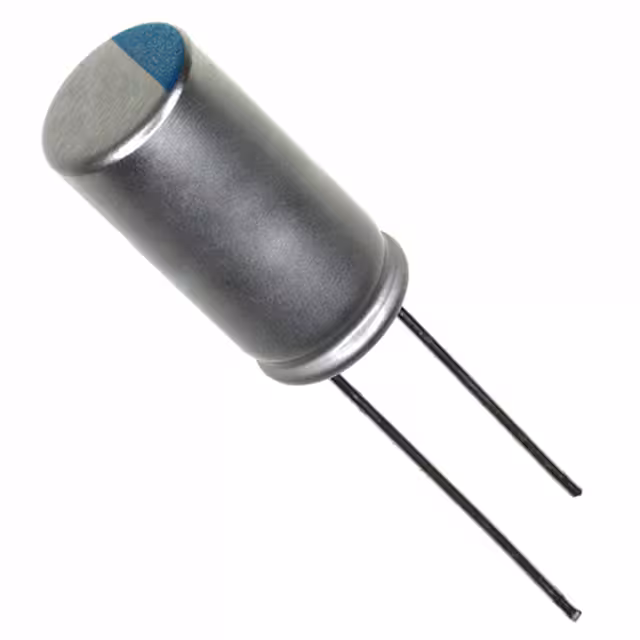

CAP ALUM POLY 560UF 20% 2.5V T/H
All alternatives
View full reportTechnical parameters
Key specs
Capacitance560 µF
Rated voltage2.5 V
Tolerance20 %
ESR7 mΩMax
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 2.5 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 4.18 A @ 100 kHz |
| Ripple Current @ Low Frequency | 209 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | Decoupling |
| Capacitance | 560 µF |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lead Spacing | 0.079" (2.00mm) |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Product Status | Active |
| Ratings | - |
| Series | ULR |
| Tolerance | ±20% |
| Type | Polymer |
