Aavid, Thermal Division of Boyd CorporationUnited States

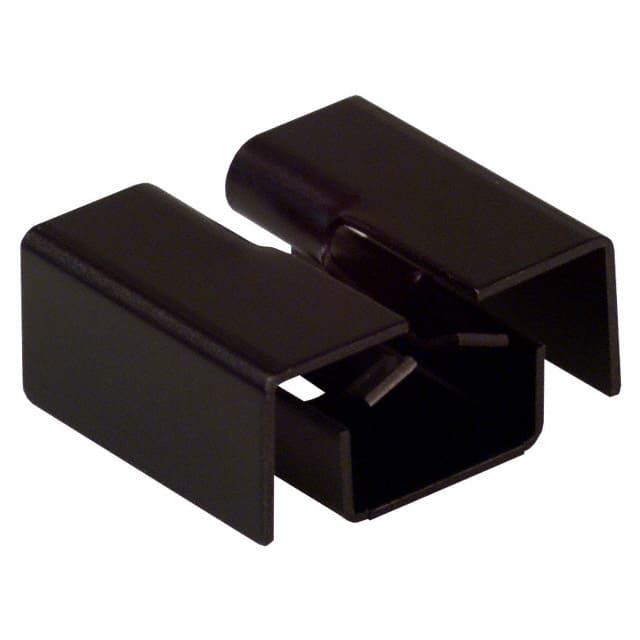

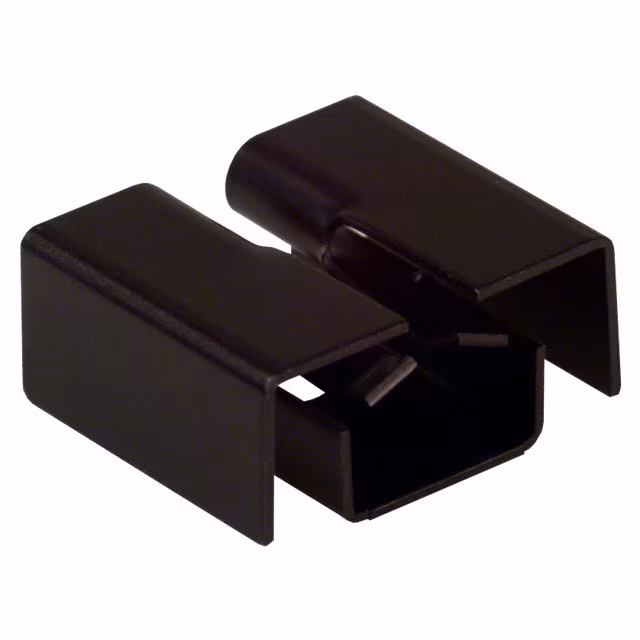

HEATSINK TO-220 VERT MNT .75"
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.395" (10.03mm) |
| Package | Bag |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 3.0W@60°C |
| Thermal Resistance @ Forced Air Flow | 8.00°C/W @ 400 LFM |
| Thermal Resistance @ Natural | 21.20°C/W |
| Other | |
| Attachment Method | Clip |
| Base Product Number | 574502 |
| Diameter | - |
| Length | 0.750" (19.05mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | - |
| Shape | Rectangular, Fins |
| Type | Board Level |
| Width | 0.860" (21.84mm) |
