MDDGermany
Protective 保护器件 · transient voltage suppression diode
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Breakdown Voltage@IT VBR(V) Min.(V) | 86.7 |
| Maximun Clamping Voltage V C （V) | 126 |
| Peak Power Dissipation P Pk (W) | 5000 |
| Peak Pulse Current I PPM (A) | 40.5 |
| Reverse Stand-off Voltage V RWM (V) | 78 |
| Environment and package | |
| Junction Temperature | 175℃ |
| Temperatre cocfficint of %/℃ | 0.108 |
| 封装类型 | R-6 |
| Other | |
| Maximum Reverse Leakage I R (μA) | 2 |
| 数量 函数 | 1 |

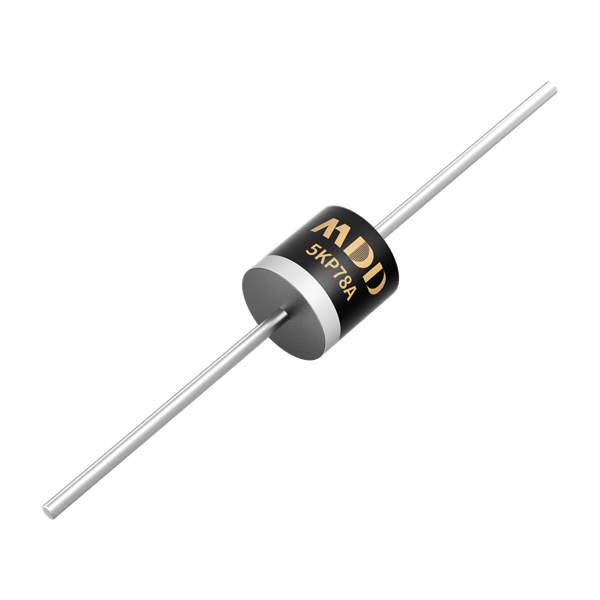

| 零件编号 | 5KP78A |
