Bourns Inc.United States

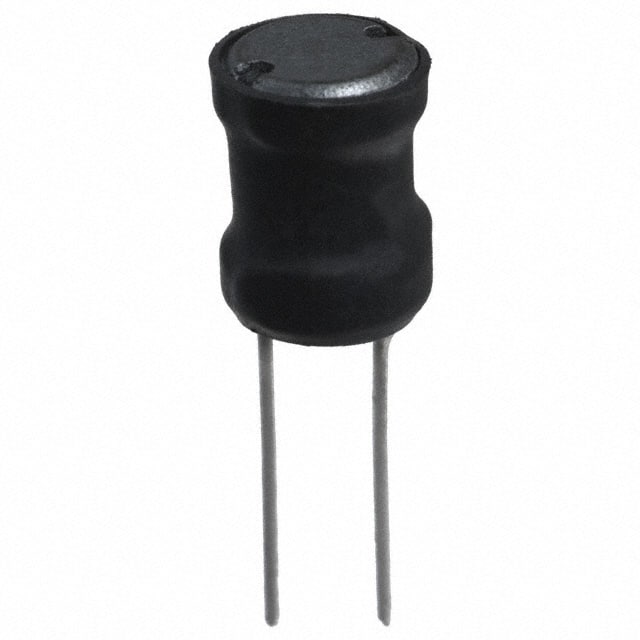

FIXED IND 1MH 510MA 2.9 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current510 mAMax
DC resistance2.9 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 510 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 1.3MHz |
| Inductance Frequency - Test | 252 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 6000 |
| DC Resistance (DCR) | 2.9Ohm Max |
| Inductance | 1 mH |
| Material - Core | Ferrite |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | 20 @ 252kHz |
| Ratings | - |
| Series | 6000 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Drum Core, Wirewound |
