Bourns Inc.United States

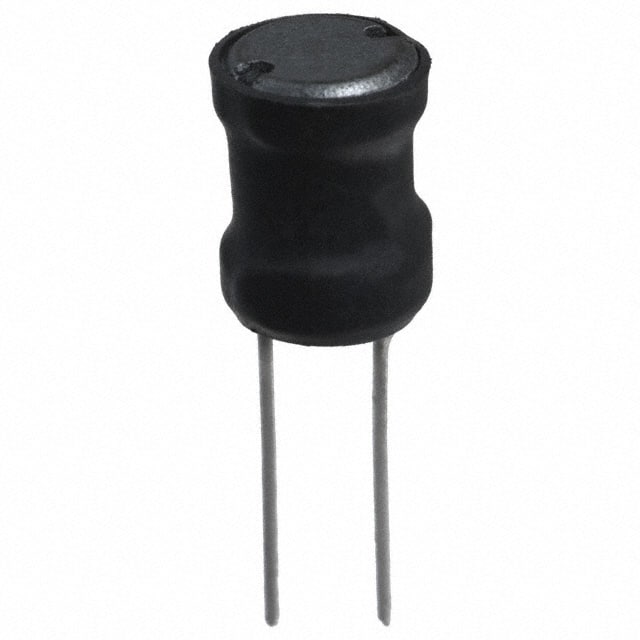

FIXED IND 4.7UH 4.6A 30 MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance4.7 µH
Rated current4.6 AMax
DC resistance30 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 51MHz |
| Inductance Frequency - Test | 7.96 MHz |
| Environment and package | |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 6000 |
| DC Resistance (DCR) | 30mOhm Max |
| Inductance | 4.7 µH |
| Material - Core | Ferrite |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | 20 @ 7.96MHz |
| Ratings | - |
| Series | 6000 |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Drum Core, Wirewound |
