HARTINGGermany

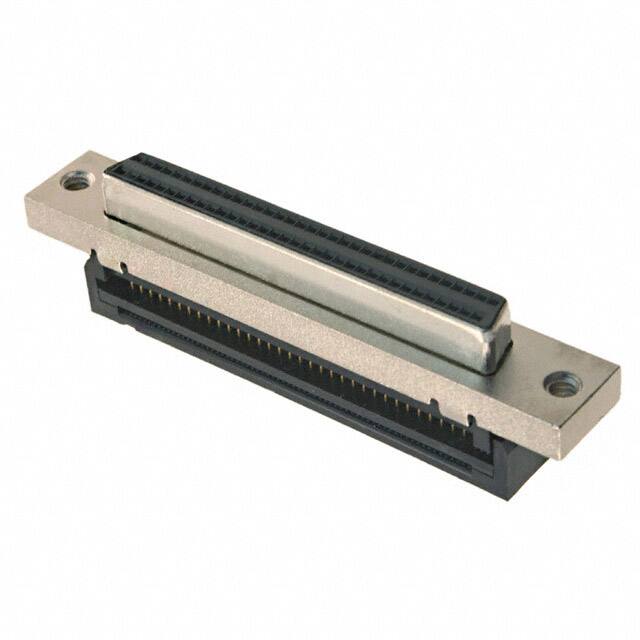

CONN D-TYPE RCPT 68P PNL MNT IDC
All alternatives
View full reportTechnical parameters
Key specs
Positions68
Rows2
GenderFemale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 240V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Other | |
| Backset Spacing | - |
| Color | - |
| Connector Style | D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Contact Form | - |
| Contact Material | - |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mfr | HARTING |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Product Status | Obsolete |
| Series | har-mik® |
| Shell Material, Finish | - |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | - |
Documents
No documents are linked to this part yet.
