Talema Group LLCUnited States

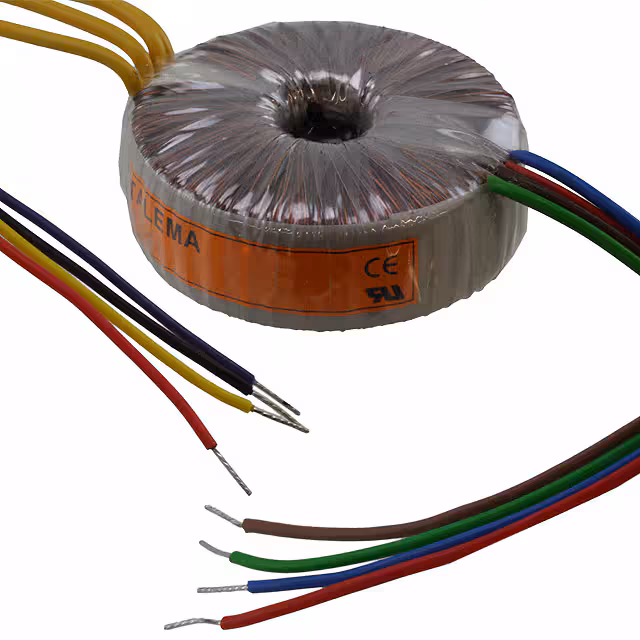

PWR XFMR TORO 15VA CHAS MT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | Parallel 682mA, Series 341mA |
| Power - Max | 15VA |
| Voltage - Isolation | 4000Vrms |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 22V, Series 44V |
| Environment and package | |
| Height - Seated (Max) | 24.00mm |
| Mounting Type | Chassis Mount |
| Package | Tray |
| Size / Dimension | - |
| Other | |
| Center Tap | No |
| Mfr | Talema Group LLC |
| Primary Winding(s) | Dual |
| Product Status | Active |
| Secondary Winding(s) | Dual |
| Series | Standard Mini |
| Termination Style | Wire Leads |
| Type | Toroidal |
| Weight | 0.578 lb (262.18 g) |
