Aavid, Thermal Division of Boyd CorporationUnited States

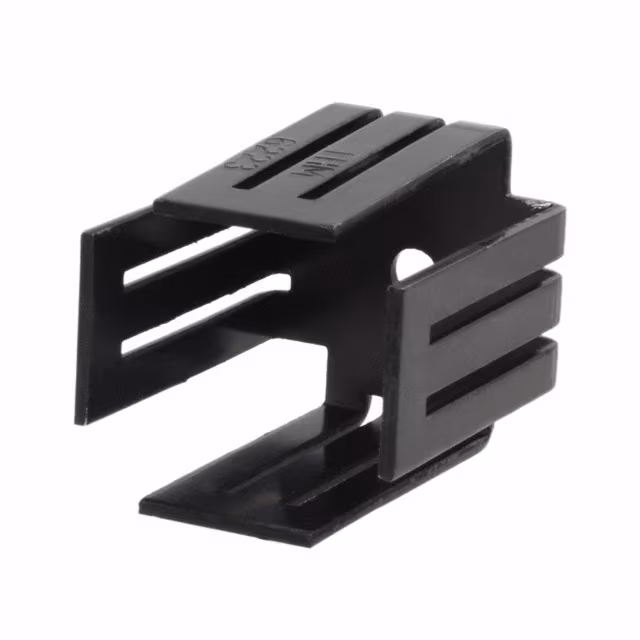

BRIDGE RECTIFIER HEATSINK 0.163"
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 1.250" (31.75mm) |
| Package | Bulk |
| Package Cooled | Bridge Rectifiers |
| Power Dissipation @ Temperature Rise | 3.0W@30°C |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 400 LFM |
| Thermal Resistance @ Natural | 9.40°C/W |
| Other | |
| Attachment Method | Bolt On |
| Base Product Number | 6223 |
| Diameter | - |
| Length | 1.060" (26.92mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | - |
| Shape | Square, Fins |
| Type | Board Level |
| Width | 1.060" (26.92mm) |
