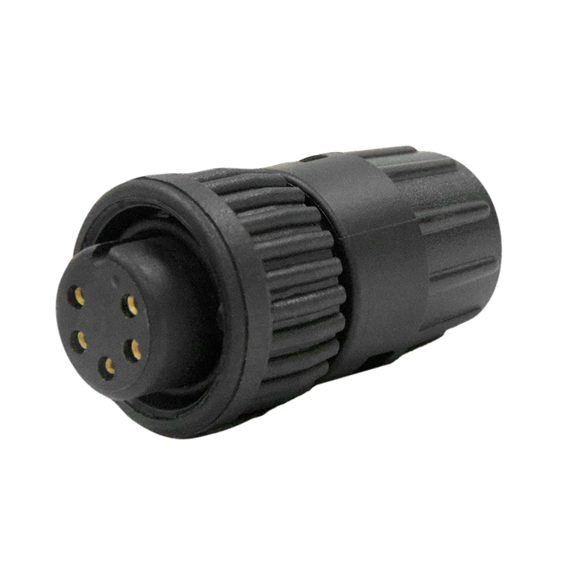

Mini-Con-X Cable End, 5-pin #20, Female, Solder Cup, Bulk
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
| Power | |
|---|---|
| Current Interruption | Not for Current Interruption |
| Current Rating | 5.6 Amps |
| Voltage Rating | 600 Volts |
| Environment and package | |
| Contact Size | 20 AWG |
| Maxiumum Temperature | 85 C |
| Minimum Temperature | -40 C |
| Mounting Torque | 10 in-lbs |
| Mounting Type | Cord |
| REACH Compliant | Compliant |
| RoHS Compliant | Compliant |
| Temperature Range | -40C to +85C |
| Other | |
| Backshell Style | Short |
| Body Material | Thermoplastic |
| Brand | Conxall |
| Cable Opening | 0.14 in |
| Color | Gray |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Plating Type | Gold |
| Coupling Locking Style | Bayonet |
| Flame Rating | UL 94-HB |
| Gender | Female |
| Handle Material | Thermoplastic |
| Insert Material | Thermoplastic |
| Insert Material Type | Standard |
| Insulation Resistance | 100000 MOhms |
| IP65 | 1 |
| IP66 | 1 |
| IP67 | 1 |
| IP69K | 1 |
| IP Rating | IP67 |
| Life Cycle | 300 Cycles |
| Locking | Locking |
| Number of Conductors | 5 |
| O-Ring Material | Elastomer |
| Outer Diameter | 0.71 in |
| Packaging Type | Bulk |
| Product Line | Mini-Con-X |
| Salt Spray | 300 Hr salt spray when mated |
| Sealed | Sealed |
| Shielding | Unshielded |
| Termination Style | Solder Cup |
| Winged Coupling Ring | Not Winged |
