TE ConnectivitySwitzerland

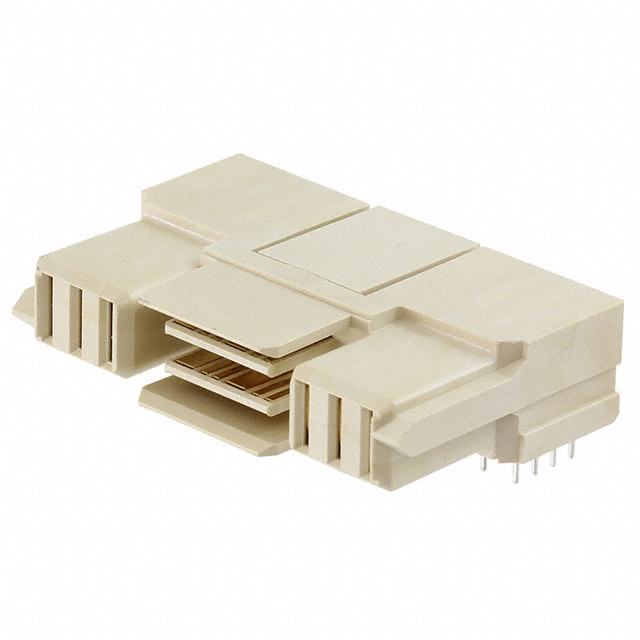

CONN PLUG HIGH SPEED 30POS PCB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C ~ 85°C |
| Package | Tube |
| Other | |
| Base Product Number | 6367550 |
| Color | Natural |
| Connector Style | High Speed |
| Connector Type | Plug, Male Pins and Blades |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 8 Differential Pairs, 8 Signal Ground, 6 Utility |
| Features | Board Lock, Guide Pin |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Columns | - |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | - |
| Pitch | - |
| Product Status | Active |
| Series | Z-DOK+ |
| Termination | Solder |
