6501-7051-003
Radiall USA, Inc.France

6501-7051-003

ActiveCoaxial Connector (RF) Assemblies

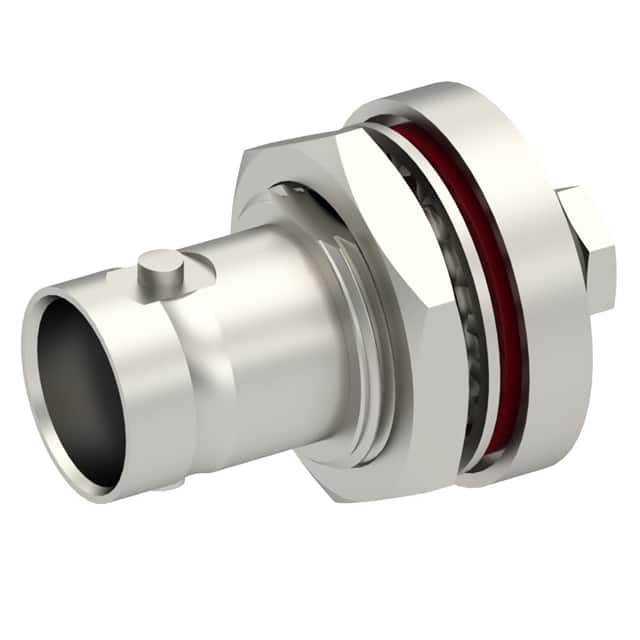

BNC / STRAIGHT JACK FEMALE CLAMP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleBNC
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
AC and DC characteristics
Frequency - Max4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number6501-7051
Body FinishNickel
Body MaterialBrass
Cable GroupRG-174, 188, 316
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeBayonet Lock
Features-
Housing ColorSilver
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrRadiall USA, Inc.
Number of Ports1
Product StatusActive
Series-
Shield TerminationClamp
