TE ConnectivitySwitzerland

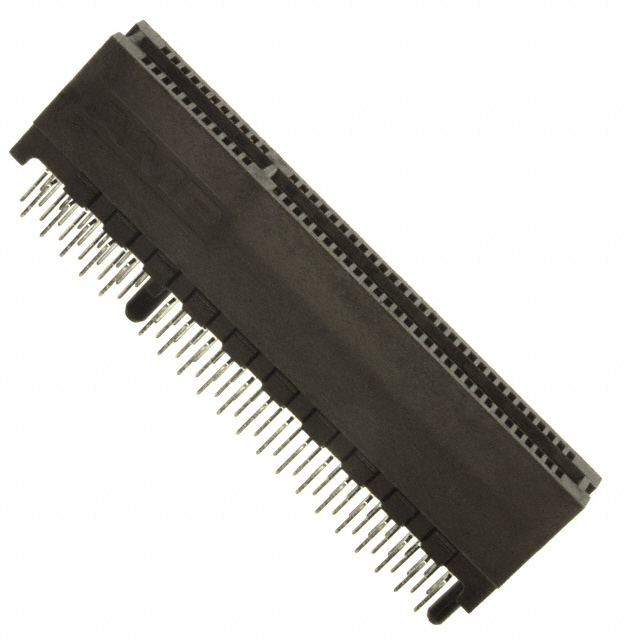

CONN EDGE DUAL FMALE 80POS 0.050
All alternatives
View full reportTechnical parameters
Key specs
Positions80
Rows2
Pitch1.27 mm
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | 650181 |
| Card Thickness | 0.062" (1.57mm) |
| Card Type | Non Specified - Dual Edge |
| Color | Brown |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Contact Type | - |
| Features | Board Guide |
| Flange Feature | - |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 80 |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
| Pitch | 0.050" (1.27mm) |
| Product Status | Active |
| Read Out | Dual |
| Series | Standard Edge .050 |
| Termination | Solder, Staggered |
Documents
No documents are linked to this part yet.
