Alpha WireUnited States
65018

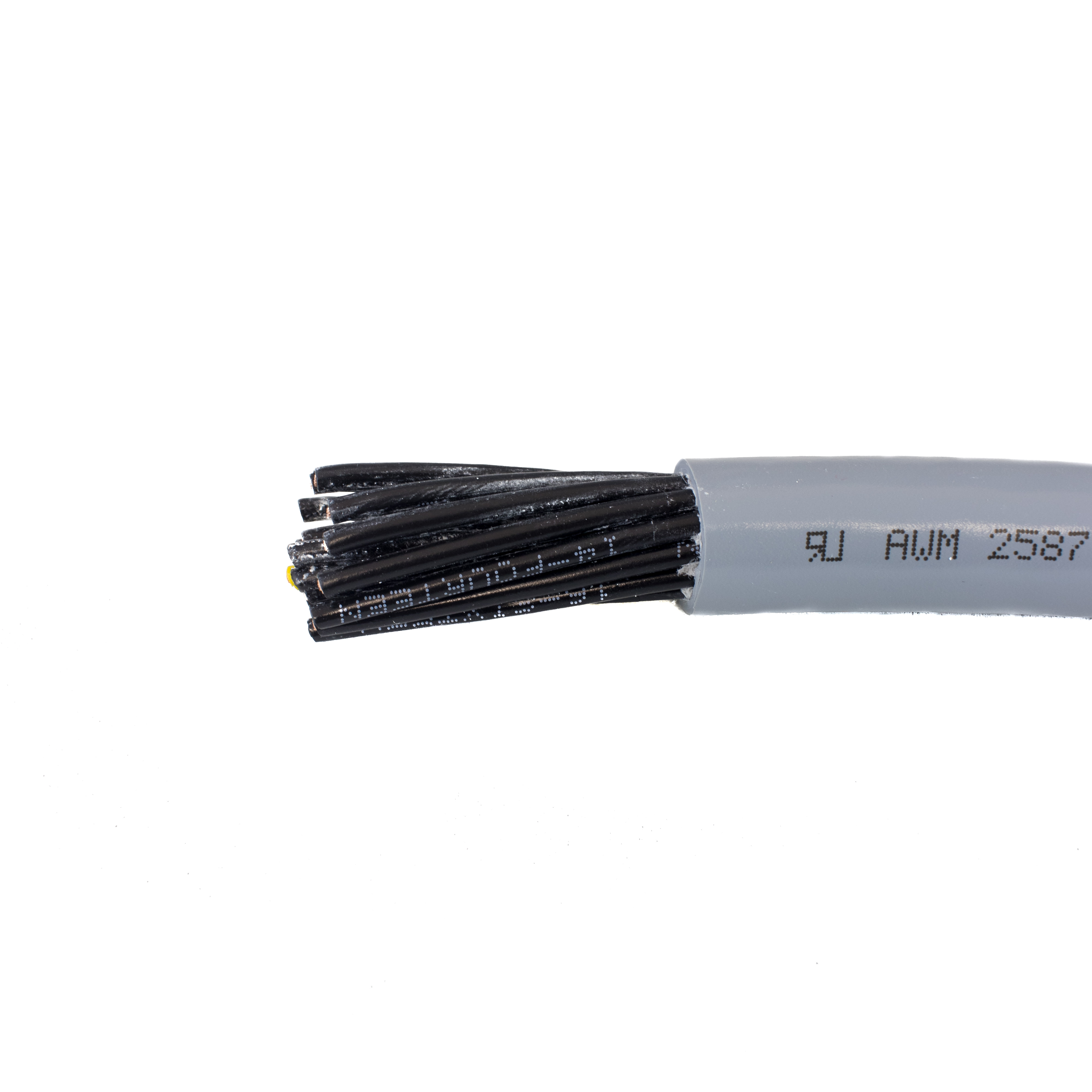

ActiveXtra-Guard Flex 20 AWG 18 Conductor is a long-lasting flexible cable designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 90°C(static), -5 to 90°C (dynamic) |
| Other | |
| 1) Component 1 | 18 X 1 COND |
| (1) Print | ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND INVERTED |
| 1) UL | 2) CSA International |
| 2) Bend Radius | 5X Cable Diameter(static), 5X Cable Diameter(dynamic) |
| 2) Cable Assembly | 18 Components Cabled |
| 2) Capacitance | 24 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Inductance | 0.21 μH/ft, Nominal |
| 3) Pull Tension | 141 Lbs, Maximum |
| 4) Conductor DCR | 10.8 Ω/1000ft @20°C, Nominal |
| 90°C / 600 V RMS | 90°C / 600 V RMS |
| a) 1000 FT | 30 x 14 x 12 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 2.5 Twists/foot (min) |
| AWM/STYLE 2587 | C(RU) AWM I/II A/B |
| b) 500 FT | 18 x 14.25 x 8 Continuous length |
| b) Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| c) 100 FT | 18 x 9 x 8 Continuous length |
| Color | BLACK #1 |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 65018 18C 20 AWG XTRAGUARD(R) FLEXIBLE CONTROL CABLE RU AWM 2587 CLASS K OR CRU AWM I/II A/B FT1 90C 600V CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
