AmphenolUnited States

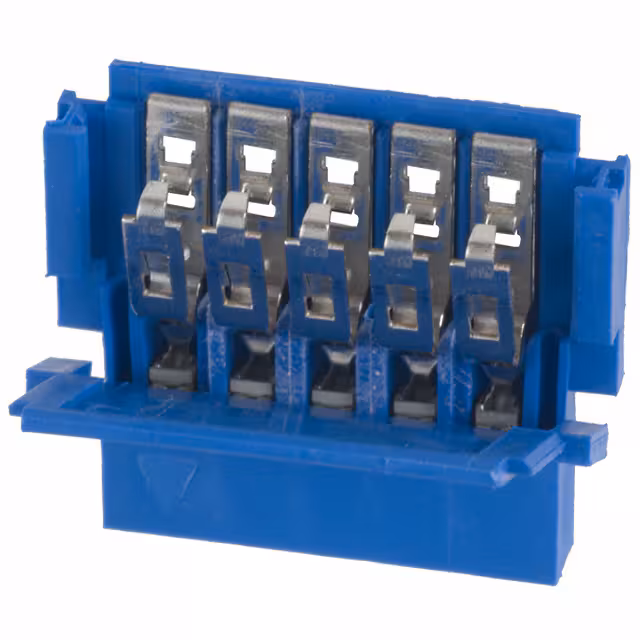

CONN FFC FPC RCPT 5POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions5
Pitch2.54 mm
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 2A |
| Voltage Rating | 500V |
| Environment and package | |
| Height Above Board | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~105°C |
| Package | Tray |
| Other | |
| Actuator Color | Gray |
| Actuator Material | - |
| Base Product Number | 65801 |
| Cable End Type | Notched |
| Connector/Contact Type | Receptacle |
| Contact Finish | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Material | Copper Nickel Alloy |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.33mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 100 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 5 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Active |
| Series | Clincher™ |
| Termination | Solder |
