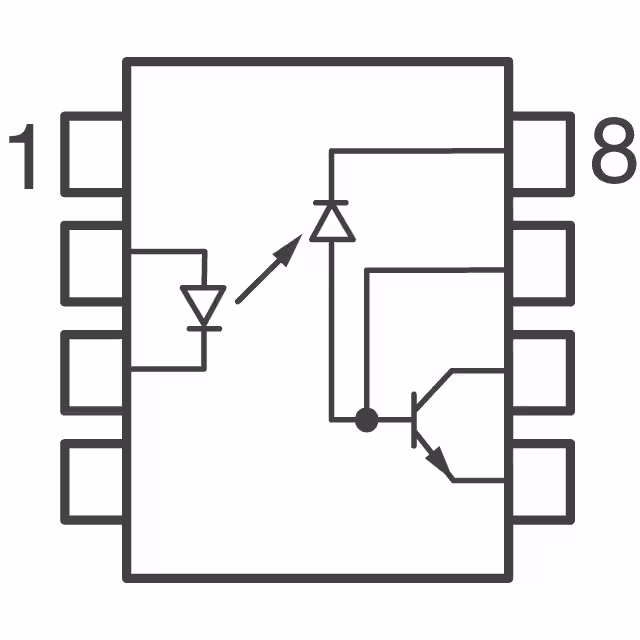

OPTOISO 5.3KV TRANS W/BASE 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5.3 kV
Output typeTransistor
Current transfer ratio7 %16mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 25 mA |
| Current - Output / Channel | 8mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 7% @ 16mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Output (Max) | 15V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~100°C |
| Package | Tube |

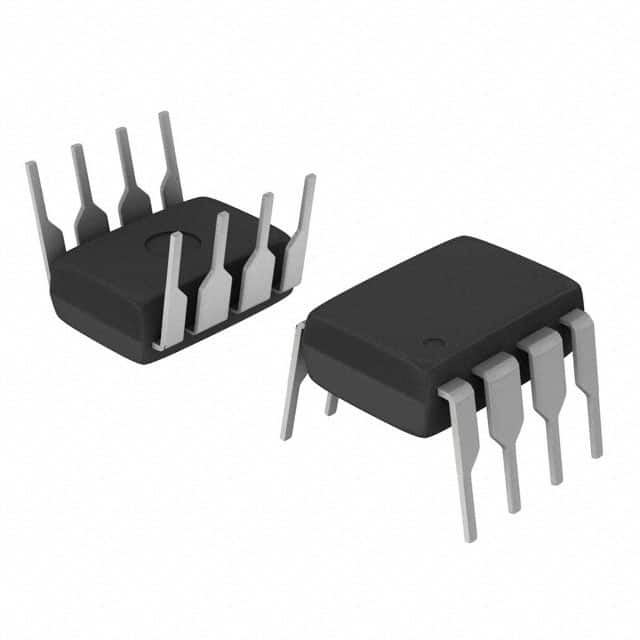

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Base Product Number | 6N135 |
| Input Type | DC |
| Mfr | Vishay Semiconductor Opto Division |
| Output Type | Transistor with Base |
| Product Status | Active |
| Series | - |
| Turn On / Turn Off Time (Typ) | 200ns, 200ns |
| Vce Saturation (Max) | - |
