Texas InstrumentsUnited States
LOGIC IC OUTPUT OPTOCOUPLER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 20mA |
| Current - Output / Channel | 50 mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 23ns, 7ns |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~100°C |
| Package | Bulk |

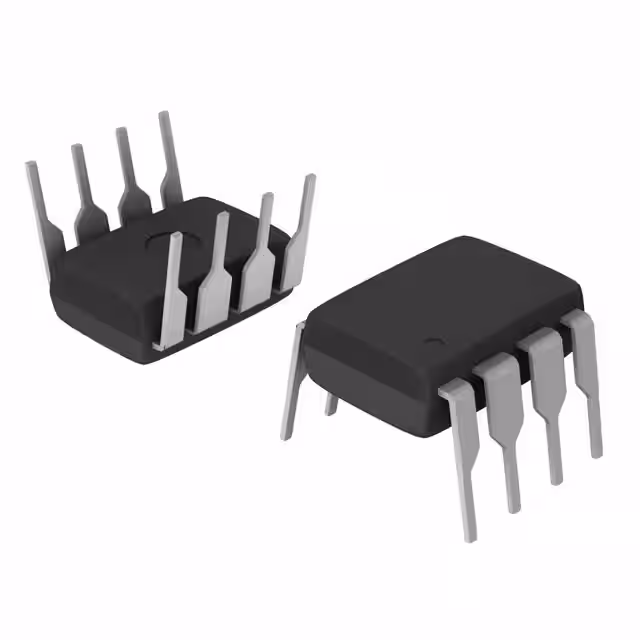

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Data Rate | 10MBd |
| Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC |
| Mfr | Texas Instruments |
| Output Type | Open Drain |
| Product Status | Active |
| Series | - |
