SCHURTER Inc.Switzerland

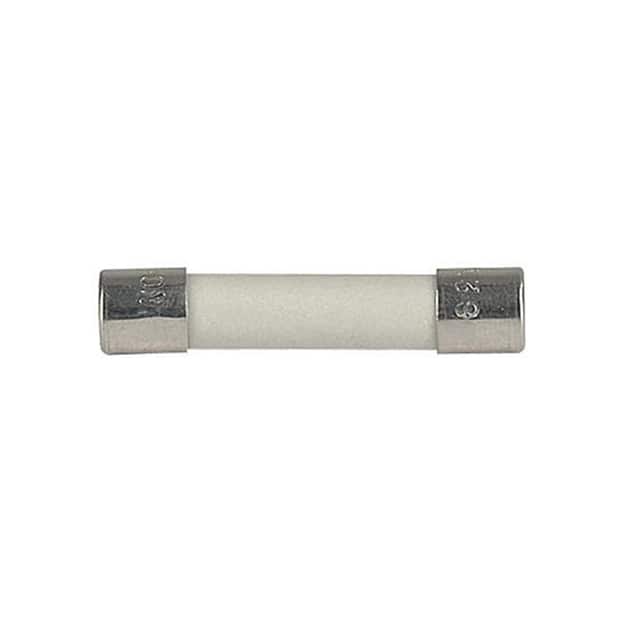

FUSE CERM 16A 250VAC 125VDC 3AB
All alternatives
View full reportTechnical parameters
Key specs
Rated current16 A
Rated voltage250 V
Response timeFast
Breaking capacity1 ~ 10 kA
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 10kA AC, 1kA DC |
| Current Rating (Amps) | 16 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Environment and package | |
| Mounting Type | Requires Holder |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Size / Dimension | 0.250" Dia x 1.260" L (6.35mm x 32.00mm) |
| Other | |
| Approval Agency | - |
| Color | - |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 160 |
| Mfr | SCHURTER Inc. |
| Product Status | Obsolete |
| Response Time | Fast Blow |
| Series | 172582 |
