C&KUnited States

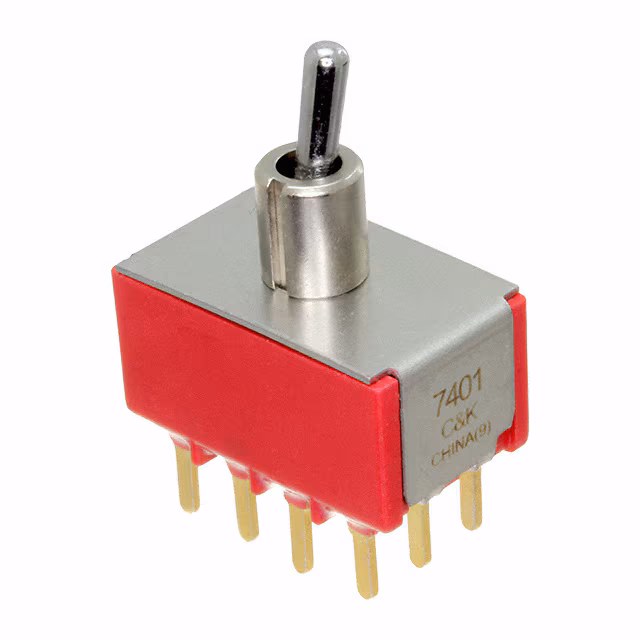

SWITCH TOGGLE 4PDT 0.4VA 20V
All alternatives
View full reportTechnical parameters
Key specs
Circuit4PDT
Switch functionOn-On
Voltage rating20 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 11.91mm Dia |
| Other | |
| Actuator Length | 17.45mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Base Product Number | 7401 |
| Bushing Thread | 15/32-32 |
| Circuit | 4PDT |
| Electrical Life | 100,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | C&K |
| Product Status | Active |
| Series | 7000 |
| Switch Function | On-On |
| Termination Style | Solder Lug |
