WAGO CorporationGermany

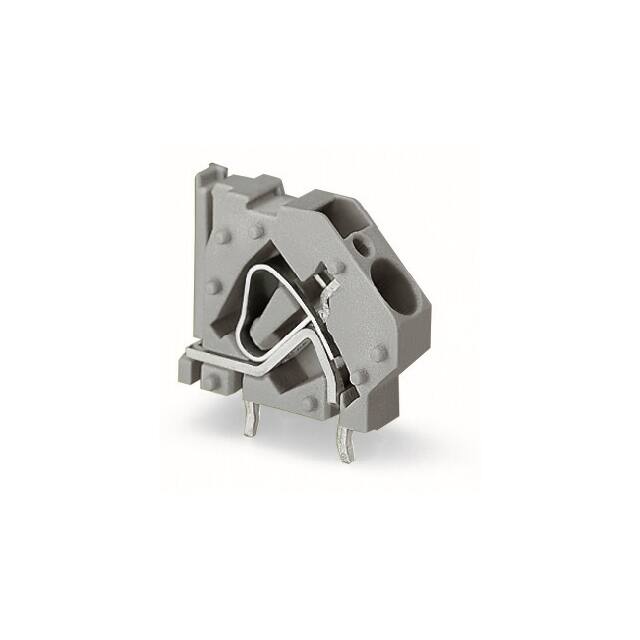

STACKABLE PCB TERMINAL BLOCK; 6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current | 30 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -60°C~105°C |
| Package | Box |
| Other | |
| Clamp Material - Plating | Steel - Nickel Plated |
| Color | Green, Yellow |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Features | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mating Orientation | 45° (135°) Angle with Board |
| Mfr | WAGO Corporation |
| Number of Levels | 1 |
| Pitch | - |
| Positions Per Level | 1 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | - |
| Series | - |
| Torque - Screw | - |
| Wire Gauge | 10-24 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
