onsemiUnited States

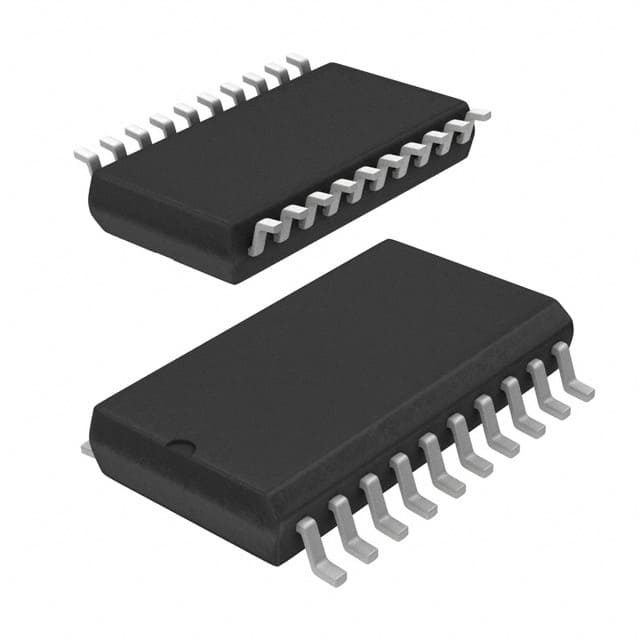

IC COMPARATOR IDENTITY 8B 20SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 24mA, 24mA |
| Current - Quiescent (Iq) | 4 µA |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Other | |
| Base Product Number | 74ACT520 |
| Mfr | onsemi |
| Number of Bits | 8 |
| Output | Active Low |
| Output Function | A=B |
| Product Status | Obsolete |
| Series | 74ACT |
| Type | Identity Comparator |
