Nexperia USA Inc.Netherlands

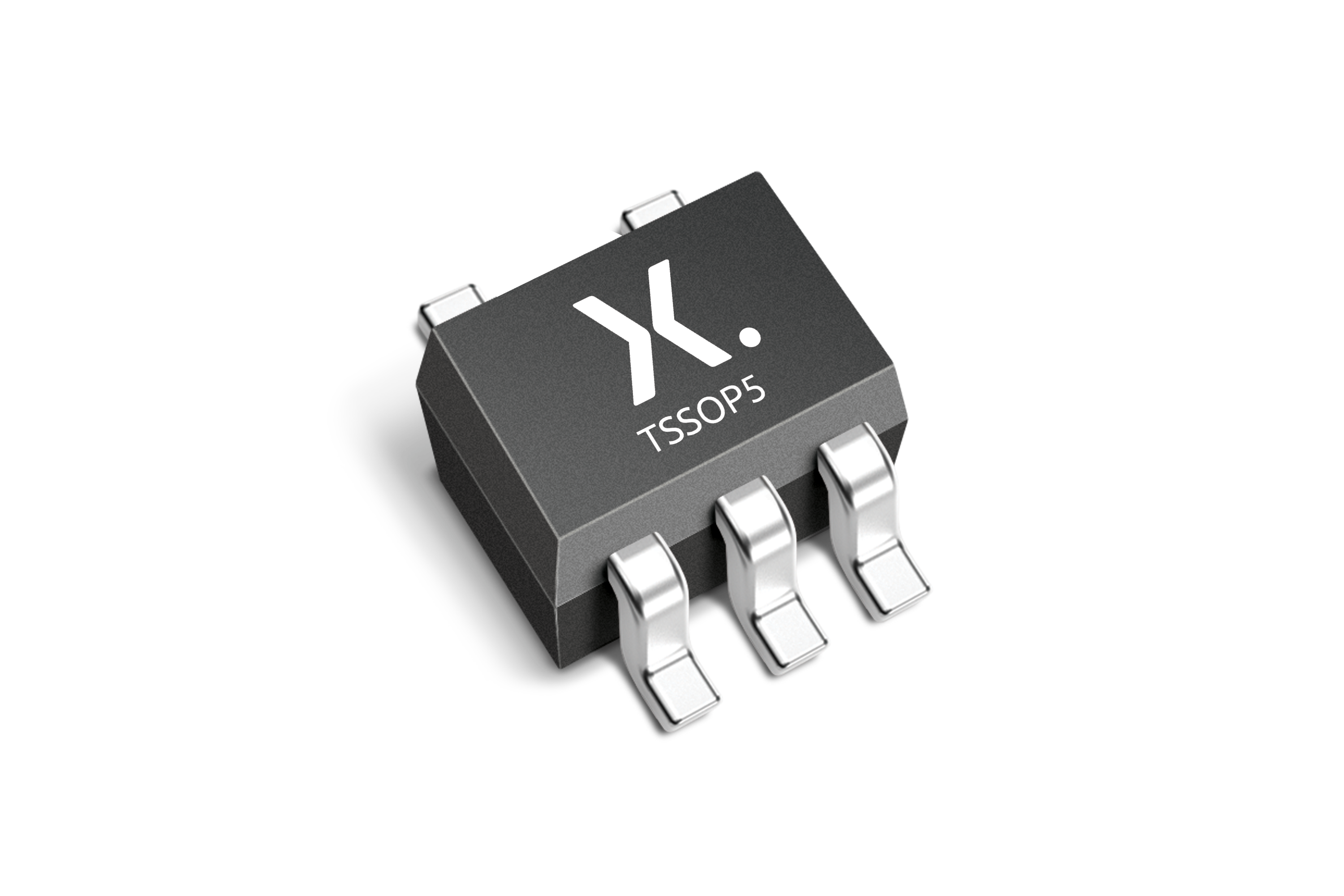

74AHC1G125GW-Q100
Buffers, Drivers, Receivers, TransceiversAll alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 最大供电电压 | 5.5V |
| 最大工作电压 | 6V |
| 最小供电电压 | 2V |
| 最小工作电压 | 2V |
| 输出电流IOH | 8mA |
| 输出电流IOL | 8mA |
| 静态工作电流 | NμA |
| AC and DC characteristics | |
| 传播延迟时间 | 14.5ns |
| 时钟频率 | 60MHZ |
| Environment and package | |
| 封装类型1 | TSSOP |
| 尺寸规格1 | 2.05*1.25*1.1mm |
| 最大工作温度 | 125°C |
| 最小工作温度 | -40°C |
| Other | |
| 工作位数 | 1 |
| 引脚数量1 | 5 |
| 数据传输率 | NMbps |
