74HC132D
Nexperia USA Inc.Netherlands

74HC132D

Active

Quad 2-input NAND Schmitt trigger

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power dissipation considerationslow
Environment and package
Halogen freeYes

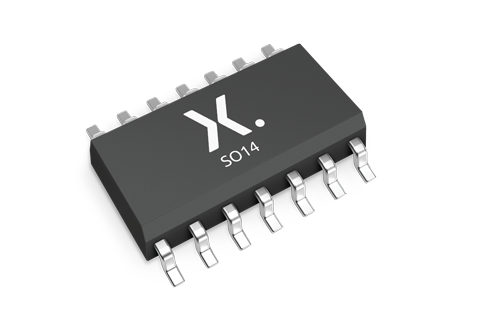

Package nameSO14
RoHSCompliant
Other
fmax36
Logic switching levelsCMOS
Nr of bits4
Output drive capability± 5.2
Rth(j-a)109
Rth(j-c)67
Tamb-40~125
tpd11
VCC2.0 - 6.0
Ψth(j-top)20.6
