Nexperia USA Inc.Netherlands

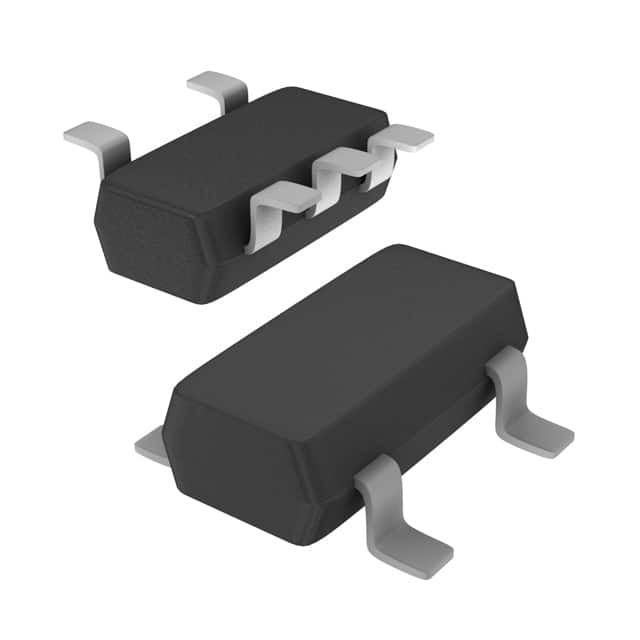

IC ANLG SWITCH SPST 5TSOP
All alternatives
View full reportTechnical parameters
Key specs
Switch circuitSPST
Circuits1
On-resistance80 ΩMax
Supply voltage2 ~ 10 V
| Power | |
|---|---|
| Channel Capacitance (CS(off), CD(off)) | - |
| Channel-to-Channel Matching (ΔRon) | - |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Voltage - Supply, Dual (V±) | - |
| Voltage - Supply, Single (V+) | 2V ~ 10V |
| AC and DC characteristics | |
| -3db Bandwidth | 200MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SC-74A |
| Other | |
| Base Product Number | 74HC1G66 |
| Charge Injection | - |
| Crosstalk | - |
| Mfr | Nexperia USA Inc. |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 80Ohm |
| Product Status | Active |
| Series | Automotive, AEC-Q100, 74HC |
| Switch Circuit | SPST - NO |
| Switch Time (Ton, Toff) (Max) | 20ns, 20ns |
