74HC595BQ-Q100
Nexperia USA Inc.Netherlands

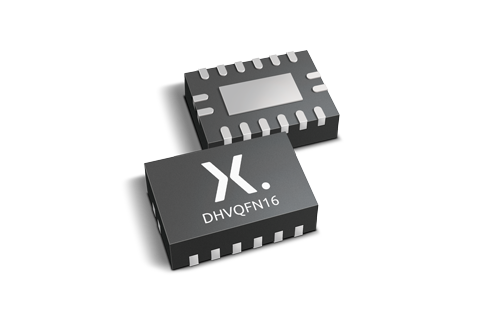

74HC595BQ-Q100

Active

8-bit serial-in, serial or parallel-out shift register with output latches; 3-state

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power dissipation considerationslow
Environment and package
Automotive qualifiedYes
Halogen freeYes
Package nameDHVQFN16
RoHSCompliant
Other
fmax108
Logic switching levelsCMOS
Output drive capability± 7.8
Rth(j-c)60
Tamb-40~125
tpd16
VCC2.0 - 6.0
Ψth(j-top)12.2

Documents

DatasheetDatasheet · 310.1 KB · 2026-09-23MarketingMarketing · 6.0 MB · 2026-09-23User ManualUser Manual · 507.9 KB · 2026-09-23Package DrawingPackage Drawing · 182.9 KB · 2026-09-23Quality & ReliabilityQuality & Reliability · 172.4 KB · 2026-09-23Package DrawingPackage Drawing · 141.5 KB · 2026-09-23Application NoteApplication Note · 87.4 KB · 2026-09-23
