74LVC00ABQ
Nexperia USA Inc.Netherlands

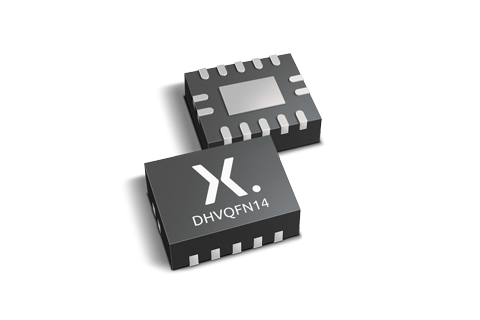

74LVC00ABQ

ActiveGates and Inverters

Quad 2-input NAND gate

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power dissipation considerationslow
Environment and package
Halogen freeYes
Package nameDHVQFN14
RoHSCompliant
Other
fmax150
Logic switching levelsCMOS/LVTTL
Nr of bits4
Output drive capability± 24
Rth(j-a)109
Rth(j-c)77
Tamb-40~125
tpd2.1
VCC1.2 - 3.6
Ψth(j-top)23.4
