Nexperia USA Inc.Netherlands

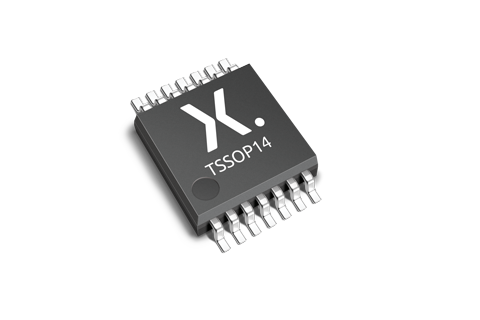

74LVC00APW-Q100
Gates and InvertersAll alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 最大工作电压 | 3.6V |
| 最大输出电流 | 24mA |
| 最小工作电压 | 1.2V |
| 输入通道数 | 2 |
| AC and DC characteristics | |
| 典型传播延迟时间 | 2.1ns |
| 最大工作频率 | 150Mhz |
| Environment and package | |
| 封装类型1 | TSSOP |
| 尺寸规格1 | 5*4.4*1.1mm |
| 最大工作温度 | 125°C |
| 最小工作温度 | -40°C |
| Other | |
| 功能单元数 | 4 |
| 引脚数量1 | 14 |
| 施密特触发器 | 0 |
| 最大数据速率 | NMbps |
