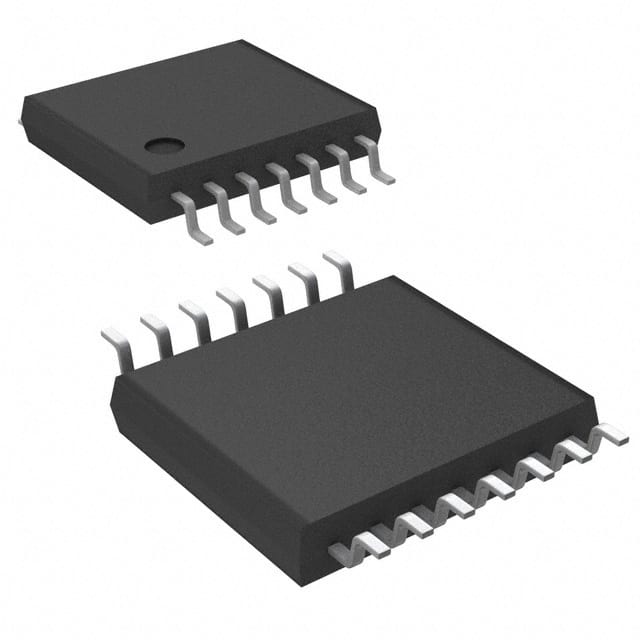

IC GATE NAND 4CH 2-INP 14TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Logic typeNAND
Elements4
Inputs2
Supply voltage1.65 ~ 5.5 V
Propagation delay4.1 nsMax · 3.3V
| Power | |
|---|---|
| Current - Output High, Low | 24mA, 24mA |
| Current - Quiescent (Max) | 10 µA |
| Voltage - Supply | 1.65V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 4.1ns @ 3.3V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Base Product Number | 74LVC00 |
| Features | - |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | NAND Gate |
| Mfr | Diodes Incorporated |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | 74LVC |
