NXP USA Inc.Netherlands
NOW NEXPERIA 74LVC1G66GS - BUS D
All alternatives
View full reportTechnical parameters
Key specs
Switch circuitSPST
Circuits1
On-resistance10 ΩMax
Supply voltage1.65 ~ 5.5 V
| Power | |
|---|---|
| Channel Capacitance (CS(off), CD(off)) | 6.5pF |
| Channel-to-Channel Matching (ΔRon) | - |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Voltage - Supply, Dual (V±) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| AC and DC characteristics | |
| -3db Bandwidth | 500MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Bulk |

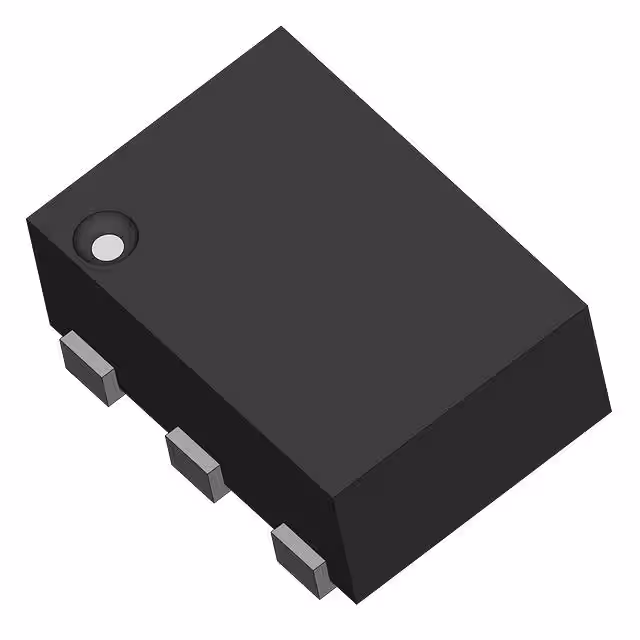

| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT1202 (1x1) |
| Other | |
| Charge Injection | 7.5pC |
| Crosstalk | - |
| Mfr | NXP USA Inc. |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Product Status | Active |
| Series | - |
| Switch Circuit | SPST - NO |
| Switch Time (Ton, Toff) (Max) | 4.2ns, 5ns |
