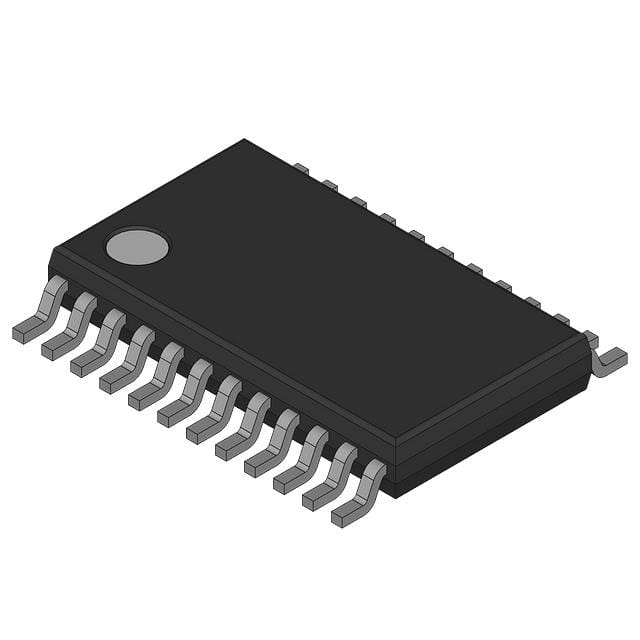

74LVC8T245PW
Nexperia USA Inc.Netherlands

74LVC8T245PW

ActiveBuffers, Drivers, Receivers, Transceivers24-TSSOP

IC TRANSLATION TXRX 5.5V 24TSSOP

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Logic typeTransceiver
Elements2
Supply voltage1.2 ~ 5.5 V
Power
Current - Output High, Low32mA, 32mA
Voltage - Supply1.2V ~ 5.5V
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C(TA)
PackageBulk
Package / Case24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package24-TSSOP
Other
Base Product Number74LVC8T245
Input Type-
Logic TypeTranslation Transceiver
MfrNexperia USA Inc.
Number of Bits per Element8
Number of Elements2
Output Type3-State
Product StatusActive
Series74LVC

Documents

DatasheetDatasheet · 383.9 KB · 2026-09-21DatasheetDatasheet · 377.8 KB · 2026-09-21MarketingMarketing · 6.0 MB · 2026-09-22OtherOther · 5.8 MB · 2026-09-22Package DrawingPackage Drawing · 224.2 KB · 2026-09-22Package DrawingPackage Drawing · 213.6 KB · 2026-09-22Quality & ReliabilityQuality & Reliability · 172.5 KB · 2026-09-22Application NoteApplication Note · 134.5 KB · 2026-09-22Application NoteApplication Note · 97.9 KB · 2026-09-22Application NoteApplication Note · 87.4 KB · 2026-09-22
