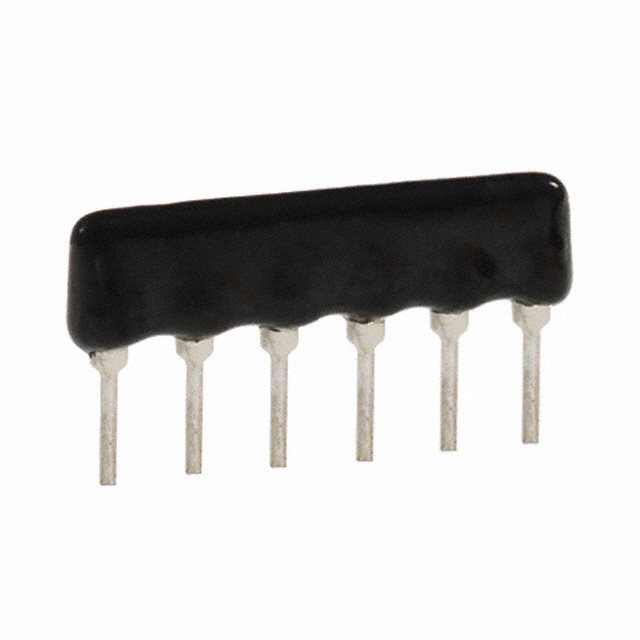

RES ARRAY 3 RES 820 OHM 6SIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power Per Element | 100mW |
| Environment and package | |
| Height - Seated (Max) | 0.195" (4.95mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Package | Bulk |
| Package / Case | 6-SIP |
| Size / Dimension | 0.600" L x 0.098" W (15.24mm x 2.50mm) |
| Supplier Device Package | 6-SIP |
| Temperature Coefficient | ±100ppm/°C |
| Other | |
| Applications | - |
| Circuit Type | Isolated |
| Mfr | CTS Resistor Products |
| Number of Pins | 6 |
| Number of Resistors | 3 |
| Product Status | Obsolete |
| Resistance (Ohms) | 820 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Series | 770 |
| Tolerance | ±2% |
