Alpha WireUnited States

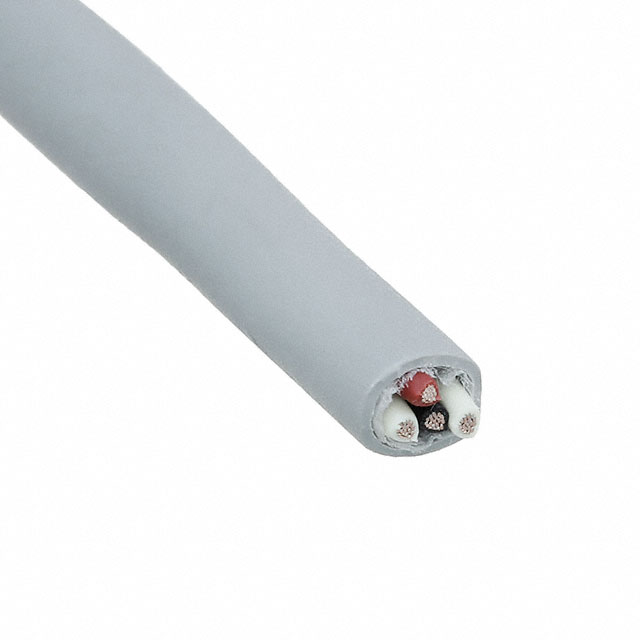

MULTI-PAIR 4COND 28AWG SLATE 1'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -40°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 78052 |
| Cable Type | Multi-Pair |
| Conductor Insulation | Polyphenylene Ether, Modified (mPPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/40 |
| Features | Biological Compatibility, Rip Cord |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.132" (3.35mm) |
| Jacket (Insulation) Material | Polyphenylene Ether, Modified (mPPE) |
| Jacket (Insulation) Thickness | 0.0150" (0.381mm) |
| Length | 1.00' (0.30m) |
| Mfr | Alpha Wire |
| Number of Conductors | 4 (2 Pair Twisted) |
| Product Status | Active |
| Ratings | ISO 10993, UL Style 21460 |
| Series | EcoCable® Mini |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | - |
| Wire Gauge | 28 AWG |
Documents
No documents are linked to this part yet.
