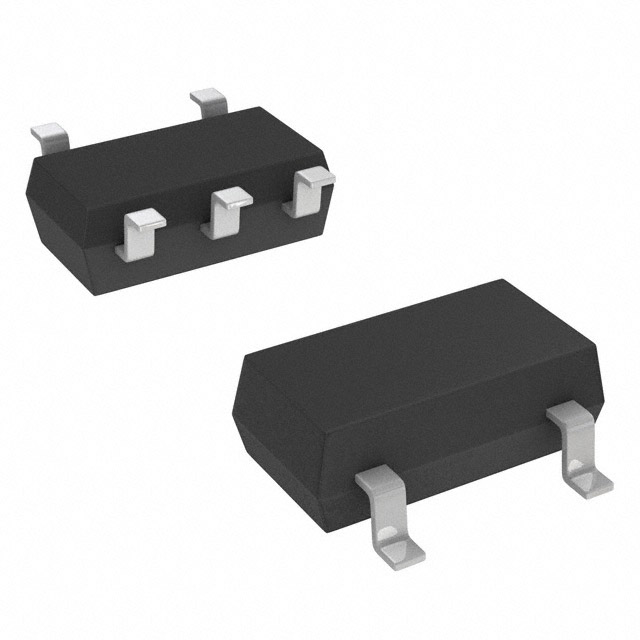

IC GATE OR 1CH 2-INP USV
All alternatives
View full reportTechnical parameters
Key specs
Logic typeOR
Elements1
Inputs2
Supply voltage900 mV ~ 3.6 V
Propagation delay4.4 nsMax · 3.3V
| Power | |
|---|---|
| Current - Output High, Low | 8mA, 8mA |
| Current - Quiescent (Max) | 1 µA |
| Voltage - Supply | 0.9V ~ 3.6V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 30pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-SSOP |
| Other | |
| Base Product Number | 7UL1G32 |
| Features | - |
| Input Logic Level - High | 0.75V ~ 2.48V |
| Input Logic Level - Low | 0.1V ~ 0.4V |
| Logic Type | OR Gate |
| Mfr | Toshiba Semiconductor and Storage |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | 7UL |
