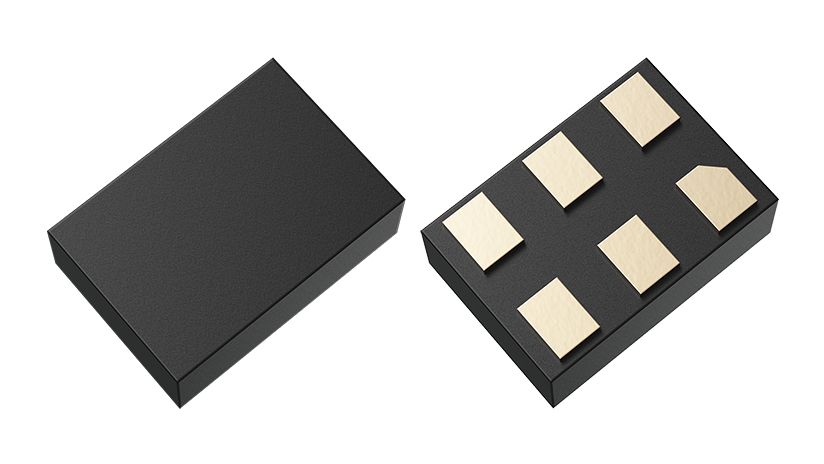

The 7UL1G32NX is a Toshiba General Purpose Logic ICs product. One-Gate Logic(L-MOS), 2-Input/OR, XSON6｜ Find data sheet and product information from the product details page.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| [Elec] Output current (Min) (I O) | 8.0 mA |
| [Elec] Supply voltage (Max) (V CC) | 3.6 V |
| [Elec] Supply voltage (Min) (V CC) | 0.9 V |
| AC and DC characteristics | |
| [Elec] Propagation delay time (Max) (tpd_tpz) | 3.6 ns |
| [Elec] Propagation delay time (Typ.) (tpd_tpz) | 2.3 ns |
| Environment and package | |
| [Desc] RoHS Compatible Product(s) (#) | Available |
| [Elec] Operating temperature (T opr) | -40 to 125 ℃ |
| Other | |
| [Desc] Function1 | Gate |
| [Desc] Function2 | 2-Input/OR |
| [Desc] Input type | Input-Tolerant |
| [Desc] Number of Circuits | 1 |
| [Desc] Output type | Power-down-Protection |
