803554

Active

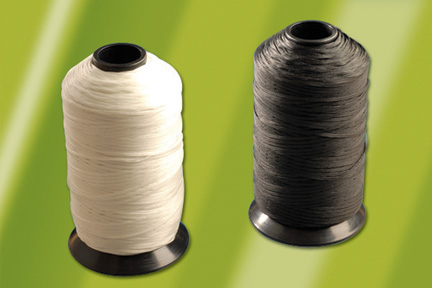

A great economical way to easily bundle wire and cable. Available in many different military grade finishes and colors.

All alternatives

Environment and package
c) Size	3
d) Temperature Range	-55°C to 260°C
e) Dimensions	0.076 +/- 0.007" x 0.010 +/- 0.003"
Other
1) Other	A-A-52084-C-3
3) California Proposition 65	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
a) 500 Yard Spools	Cardboard Tubes
a) Breaking Strength	35 Lbs. Min.
a) Material	Aramid (Aromatic Polyamide), high tenacity, continuous filament
b) Elongation	40% Max.
b) Length Tolerance	+10/-3%
b) Type	V
c) Finish Weight	7% - 17%
c) Multiple Lengths	4 lengths max per tube
d) Finish	C- Synthetic Rubber (Elastomeric) Coating, mercury and copper free
f) Color	White
