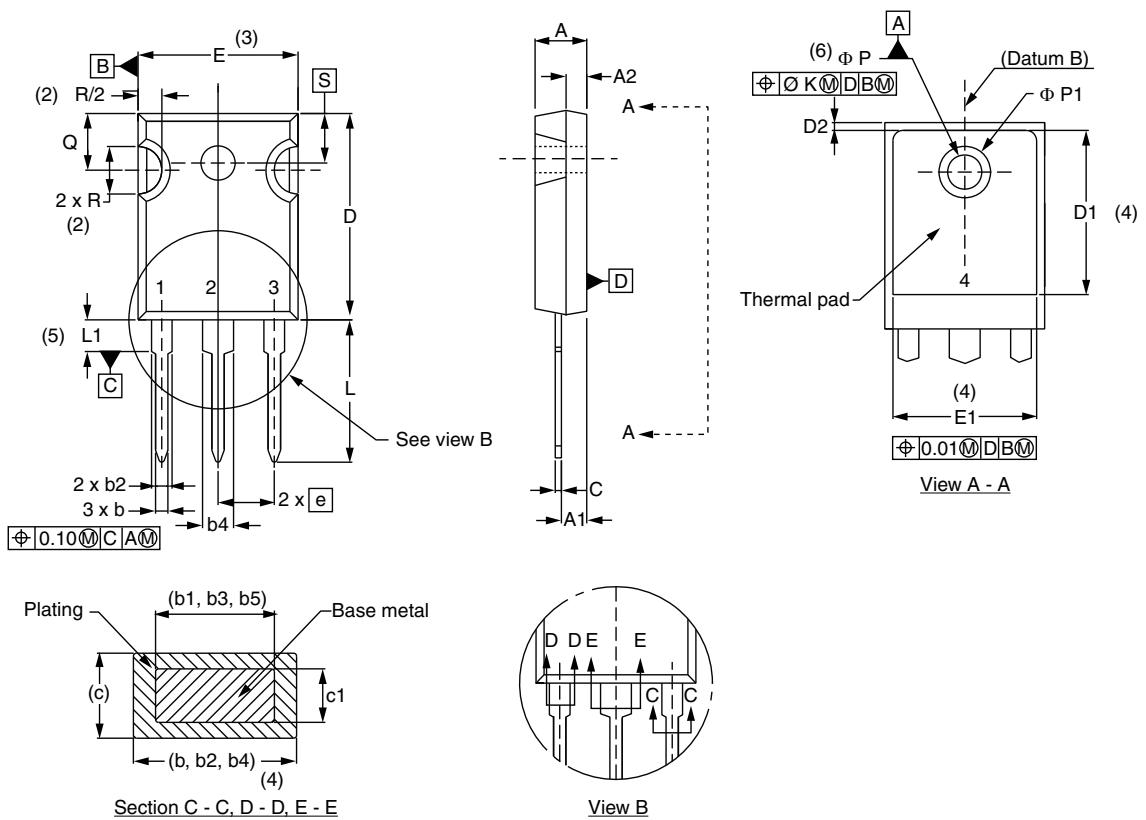

TO-247AC

80CPQ150

IC SCHOTTKY RECTIFIER 150V 40A TO-247-3

Vishay 80CPQ150 is a TO-247AC packaged Schottky rectifier with 150V reverse voltage and 2x40A average forward current, supporting 175°C junction temperature, featuring a common cathode configuration for switching power supplies and reverse battery protection.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage150 V

Average rectified current40 ~ 80 A50 % duty cycle at $T_C = 150 °C$

Forward voltage860 mVMax · $T_J = 125 °C$ (per leg)，$T_J = 25 °C$ (per leg)

TypeSchottky

Datasheet-verified parameters

15 items

Parameter	Value and test conditions	Source
Maximum DC reverse voltage	150 V
Maximum average forward current	80 A (per device), 40 A (per leg), 50 % duty cycle at $T_C = 150 °C$, rectangular waveform
Maximum forward voltage drop	0.71 V (Typ) at 40 A, $T_J = 125 °C$ (per leg); 0.86 V (Max) at 40 A, $T_J = 25 °C$ (per leg)
Diode type	Schottky Rectifier, Common cathode
Package	TO-247AC
Junction temperature	-55 to 175 °C
Qualification	JEDEC-JESD47
RoHS Compliant	Compliant
Halogen Free	Available (VS-80CPQ150-N3)
Maximum peak one cycle non-repetitive surge current	1930 A (5 μs sine), 500 A (10 ms sine), per leg
Maximum reverse leakage current	200 μA (Max) at $T_J = 25 °C$, $V_R = Rated V_R$; 26 mA (Max) at $T_J = 125 °C$, $V_R = Rated V_R$ (per leg)
Typical junction capacitance	1100 pF (Max) at $V_R = 5 V_{DC}$, 25 °C (per leg)
Non-repetitive avalanche energy	0.5 mJ at $T_J = 25 °C, I_{AS} = 1.0 A, L = 1 mH$ (per leg)
Maximum voltage rate of change	10 000 V/μs at Rated $V_R$
Typical series inductance	7.5 nH (Max), measured lead to lead 5 mm from package body (per leg)

All parameters (8)ExpandCollapse

Environment and package
Package	TO-247AC
Other
Diode variation	Common cathode
E_AS	0.5 mJ
I_F(AV)	2 x 40 A
I_RM max.	26 mA at 125 °C
T_J max.	175 °C
V_F at I_F	0.71 V
V_R	150 V

Pinout and package

PackageTO-247AC

Pin	Name	Function	Source
1		Anode 1
2		Common cathode
3		Anode 2
