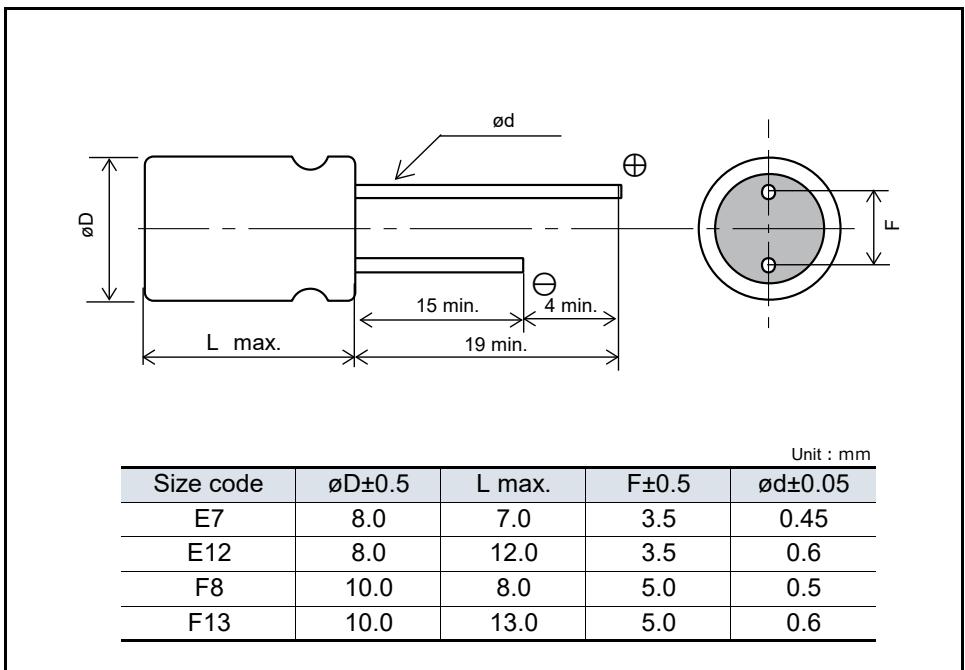

Dimensions (not to scale)

Dimensions (not to scale)

PanasonicJapan

80SXE56M+3

Solid State CapacitorsF13

CAP SOLID 56UF 80V RADIAL

Panasonic SXE series conductive polymer aluminum solid capacitor, 80V rated voltage, 56uF capacitance, F13 package (10.0x13.0mm), operating temperature -55°C to +125°C, RoHS and halogen free compliant.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

15 items
ParameterValue and test conditionsSource
PackageF13 (Ø10.0 x 13.0 mm)
Category temp. range-55 °C to +125 °C
RoHS complianceCompliant
Halogen freeYes
Rated voltage80 V
Rated capacitance56 μF
Capacitance tolerance±20 % (120 Hz / +20 °C)
ESR28 mΩ max. (100 kHz to 300 kHz / +20 °C)
Dissipation factor (tan δ)0.12 (120 Hz / +20 °C)
Ripple current980 mA rms (100 kHz / +105 °C < Tx ≤ +125 °C)
Allowable ripple current3100 mA rms (100 kHz / Tx ≤ +105 °C)
DC leakage current224 μA (After 2 minutes)
Endurance+125 °C 1000 h, rated voltage applied
Damp heat (Steady state)+60 °C, 90 % to 95 % RH, 1000 h, No-applied voltage
Product statusNot recommended for new design
All parameters (10)ExpandCollapse
Power
Rated voltage80 V
AC and DC characteristics
Allowable ripple current3100 mA rms
Ripple current980 mA rms
Environment and package
Case size10.0 x 13.0 mm
Category temp. range-55 °C to +125 °C
Size codeF13
Other
Capacitance tolerance±20 %
Dissipation factor (tan δ)0.12
ESR28 mΩ (Max)
Rated capacitance56 μF

Documents

DatasheetDatasheet · 801.3 KB · 2026-10-29
Open document center

Datasheet-verified content is extracted by AI from the manufacturer datasheet. Click a page number to view the original.
