Belden Inc.United States

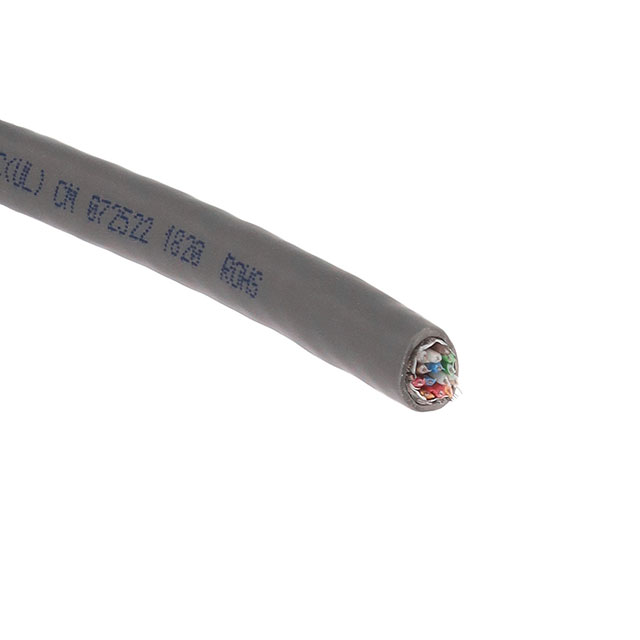

MULTI-PAIR 14COND 24AWG 100'
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -30°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 8107 |
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/32 |
| Features | Drain Wire |
| Jacket Color | Chrome |
| Jacket (Insulation) Diameter | 0.341" (8.66mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Length | 100.0' (30.5m) |
| Mfr | Belden Inc. |
| Number of Conductors | 14 (7 Pair Twisted) |
| Product Status | Active |
| Ratings | UL Style 2919 |
| Series | Classics |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | Computer |
| Wire Gauge | 24 AWG |
