Bourns Inc.United States

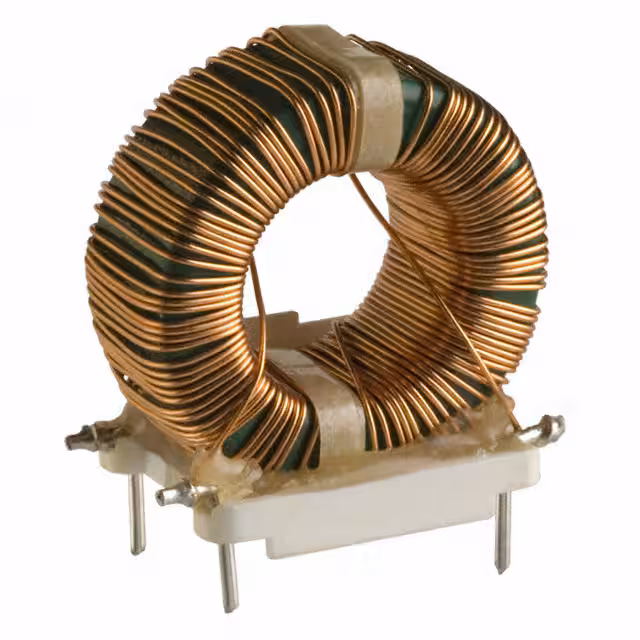

CMC 20MH 2.9A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2.9 AMax
DC resistance210 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2.9A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 20 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 1.450" (36.83mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |

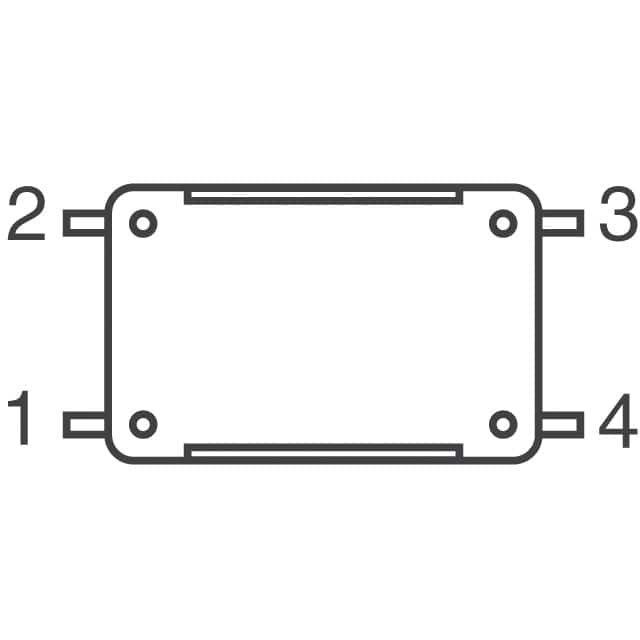

| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.350" L x 0.800" W (34.29mm x 20.32mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 8110 |
| DC Resistance (DCR) (Max) | 210mOhm |
| Features | - |
| Filter Type | - |
| Mfr | Bourns Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 8100 |
