ebm-papst Inc.Germany

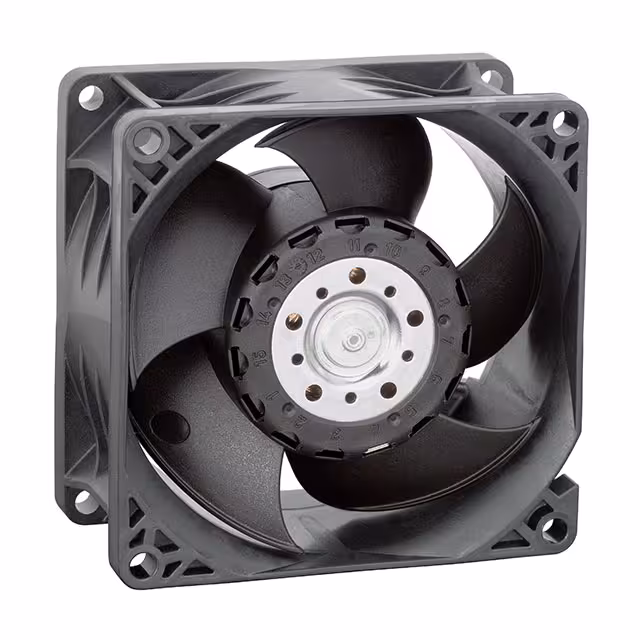

FAN AXIAL 80X38MM 48VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 36 W |
| Voltage Range | 20 ~ 58VDC |
| Voltage - Rated | 48VDC |
| AC and DC characteristics | |
| Noise | 71.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~140°F(-10~60°C) |
| Package | Bulk |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 131.0 CFM (3.67m³/min) |
| Approval Agency | - |
| Base Product Number | 8218J |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | - |
| Series | 8200J |
| Static Pressure | - |
| Termination | 3 Wire Leads |
| Weight | 0.44 lb (199.58 g) |
| Width | 38.00mm |
