Würth ElektronikGermany

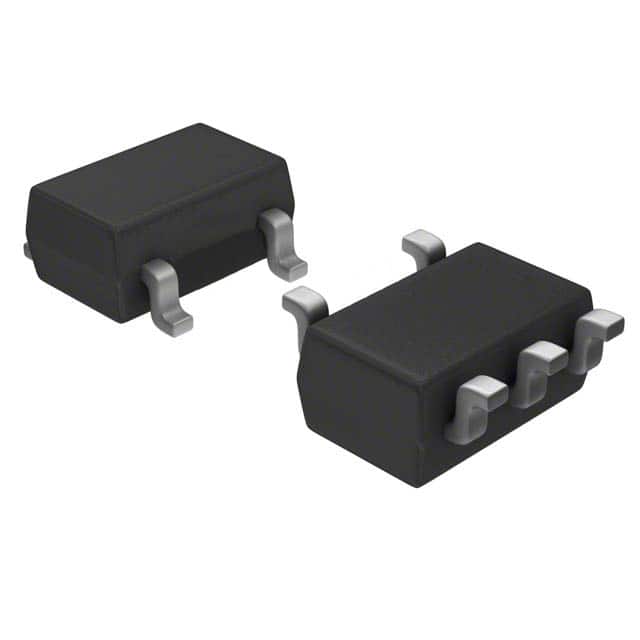

TVS DIODE 5VWM 8.5VC SOT23-5L
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage6.1 V
Clamping voltage8.5 VMax
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) |
| Power Line Protection | Yes |
| Power - Peak Pulse | - |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6.1V |
| Voltage - Clamping (Max) @ Ipp | 8.5V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5L |
| Other | |
| Applications | General Purpose |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WE-TVS |
| Type | Steering (Rail to Rail) |
