ebm-papst Inc.Germany

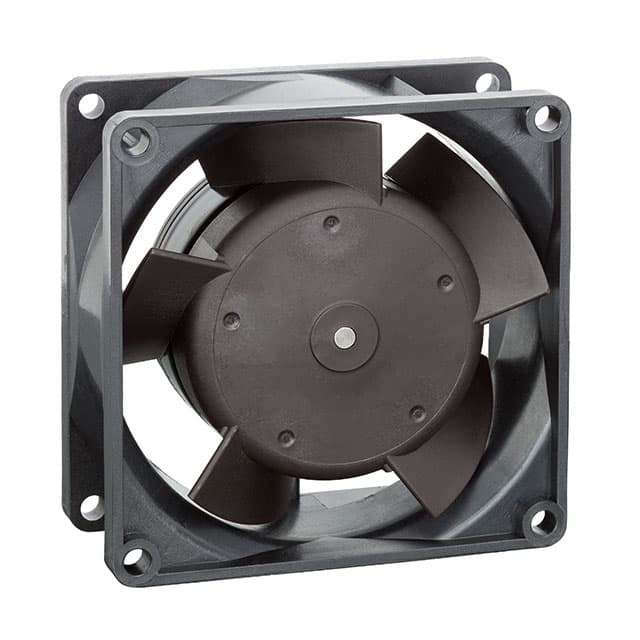

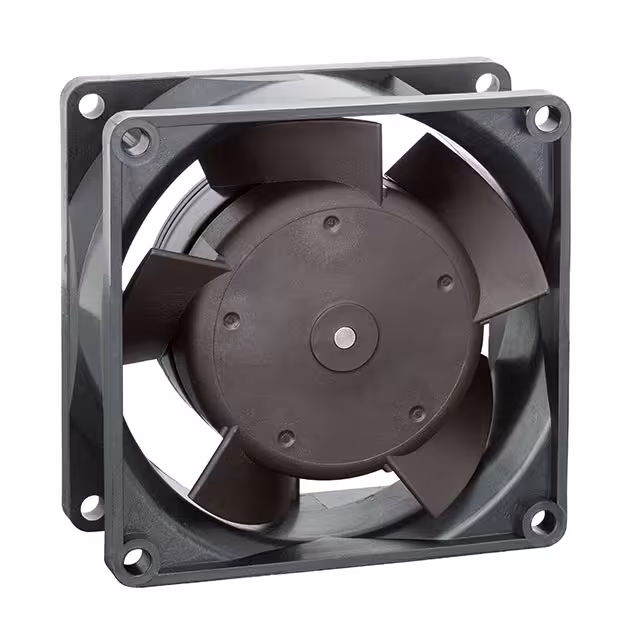

FAN AXIAL 80X32MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 5.5 W |
| Voltage Range | 7 ~ 12.6VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 48.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Operating Temperature | -4~140°F(-20~60°C) |
| Package | Box |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 47.1 CFM (1.32m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 8312 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 5000 RPM |
| Series | 8300 |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.375 lb (170.1 g) |
| Width | 32.00mm |
