Huber+Suhner, Inc.Switzerland

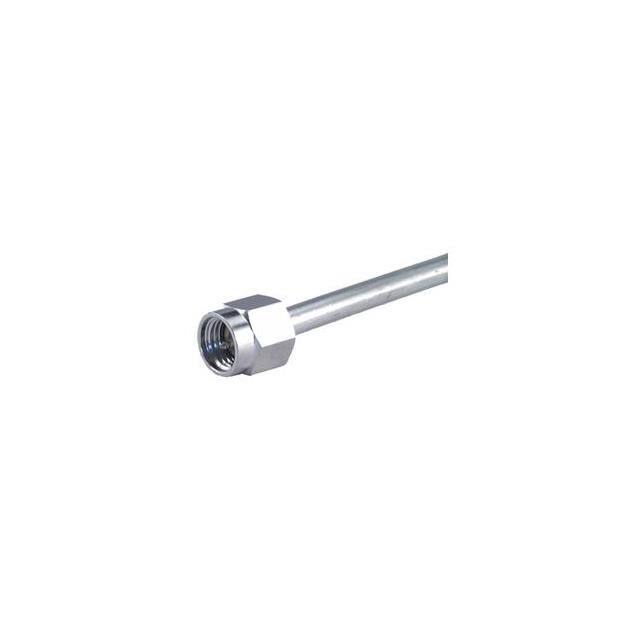

11_SMA-50-3-77/119_NH
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMA
GenderMale
Impedance50 Ω
Max frequency18 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 18 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 11_SMA-50 |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-141 |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Huber+Suhner, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
